anchao opened a new pull request #5915:
URL: https://github.com/apache/incubator-nuttx/pull/5915


   ## Summary

   sched/note: add support of trace section mark

   The implementation of this feature is based on android systrace:

   https://source.android.com/devices/tech/debug/ftrace

   Application developers are more concerned about the performance of
   the specified application section,
   added two APIs to implement performance measurement:

   void sched_note_begin(FAR const char *str);
   void sched_note_end(FAR const char *str);
   or
   SCHED_NOTE_BEGIN();  /* defined to sched_note_begin(__FUNCTION__) */
   SCHED_NOTE_END();    /* defined to sched_note_end(__FUNCTION__) */

   Signed-off-by: chao.an <anc...@xiaomi.com>

   ## Impact

   N/A

   ## Testing

   https://source.android.com/devices/tech/debug/ftrace
   https://github.com/catapult-project/catapult/


   test code:

   ```
   void ccc(void)
   {
     SCHED_NOTE_BEGIN();
     usleep(10);
     SCHED_NOTE_END();
   }

   void bbb(void)
   {
     SCHED_NOTE_BEGIN();
     ccc();
     SCHED_NOTE_END();
   }

   void aaa(void)
   {
     SCHED_NOTE_BEGIN();
     bbb();
     SCHED_NOTE_END();
   }

   int main(int argc, FAR char *argv[])
   {
     while (1)
       {
         SCHED_NOTE_BEGIN();
         aaa();
         SCHED_NOTE_END();
       }
     return 0;
   }

   ```

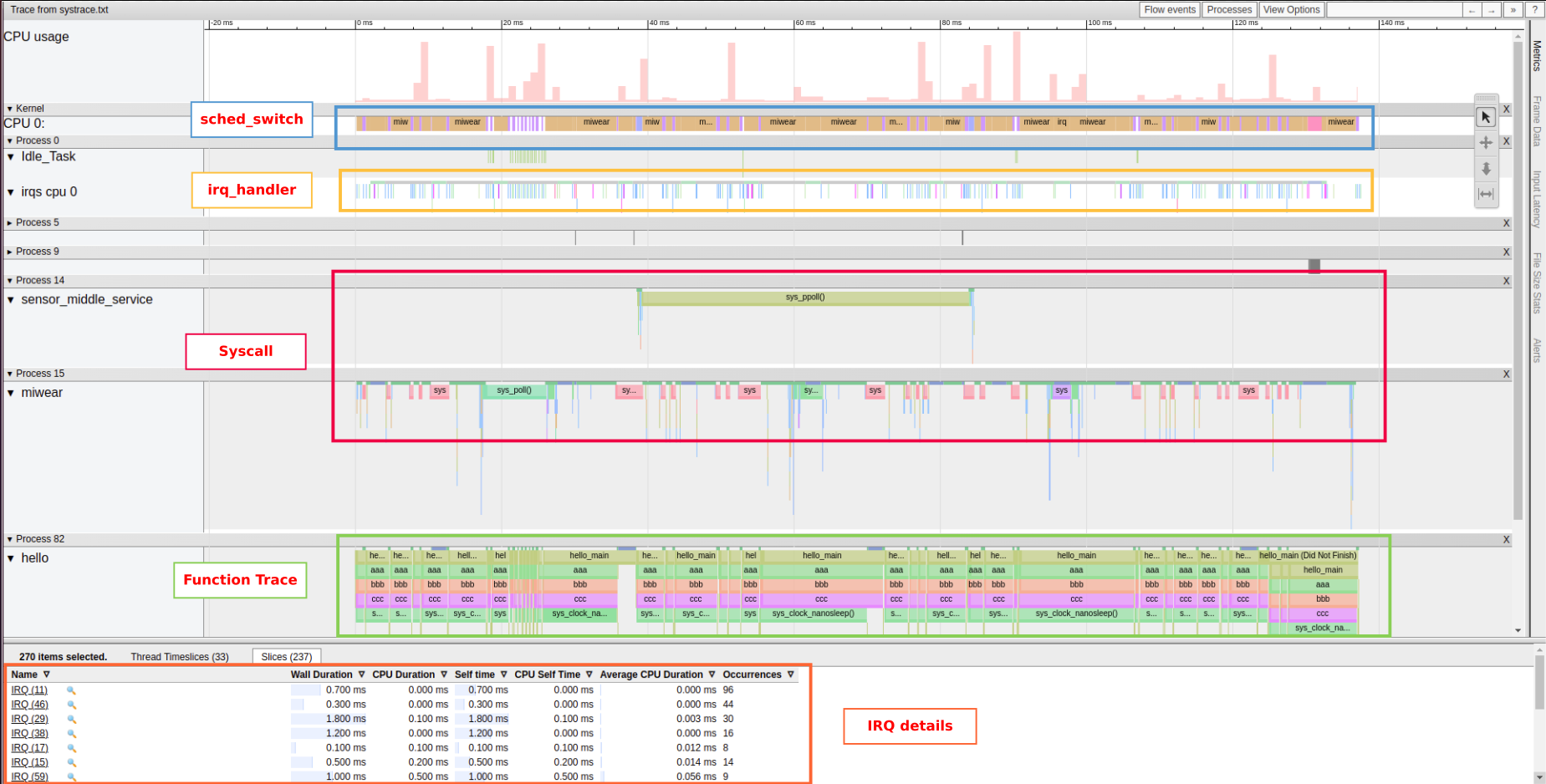

   ![Screenshot from 2022-03-30
22-34-16](https://user-images.githubusercontent.com/758493/160860334-a5006bbe-c506-4d59-b067-74651a863982.png)


   ## How To Use

   https://nuttx.apache.org/docs/latest/guides/tasktraceuser.html

   1. enable sched  instrumentation

   ```
   CONFIG_DRIVER_NOTERAM=y
   ...
   CONFIG_SCHED_INSTRUMENTATION=y
   CONFIG_SCHED_INSTRUMENTATION_SWITCH=y
   CONFIG_SCHED_INSTRUMENTATION_SYSCALL=y
   CONFIG_SCHED_INSTRUMENTATION_IRQHANDLER=y
   CONFIG_SCHED_INSTRUMENTATION_DUMP=y
   ```
   2. Capture sched note info

   ```
   nsh> trace switch +
   nsh> trace syscall +
   nsh> trace start
   nsh> trace dump
   ```

   3. convert to systrace

   https://source.android.com/devices/tech/debug/ftrace

   If you captured your systrace with --no-compress, this is in the html file
in the section beginning with BEGIN TRACE.
   If not, run html2trace from the [Catapult
tree](https://github.com/catapult-project/catapult/tree/master/)
(tracing/bin/html2trace) to uncompress the trace.

   ```
   $ git clone g...@github.com:catapult-project/catapult.git
   $ cd catapult/
   $ ./tracing/bin/trace2html trace.txt
   trace.html
   ```

[systrace.txt](https://github.com/apache/incubator-nuttx/files/8381565/systrace.txt)


   4. open the trace html via web browser:
   `$ google-chrome trace.html`


--
