Hi, I'm sorry for delay.

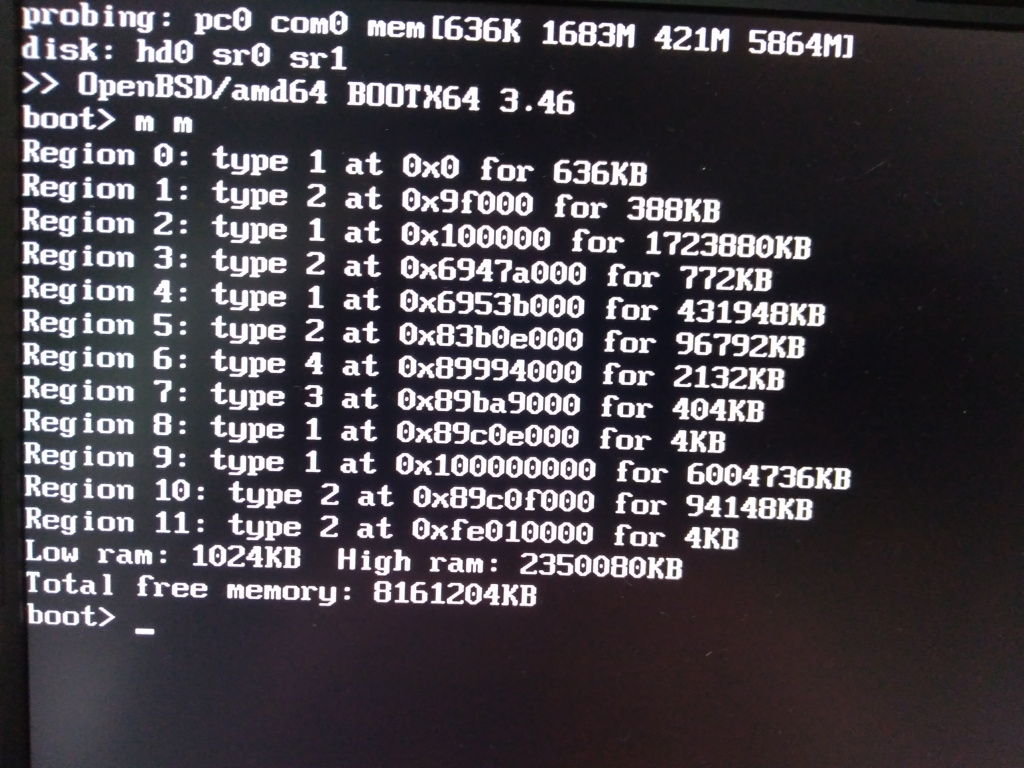

On Fri, 20 Sep 2019 22:08:52 -0700 Mike Larkin <[email protected]> wrote: > On Fri, Sep 20, 2019 at 03:35:00PM +0200, Mark Kettenis wrote: >> > Date: Fri, 20 Sep 2019 06:06:40 -0700 >> > From: Mike Larkin <[email protected]> >> > On Fri, Sep 20, 2019 at 02:22:13PM +0200, Mark Kettenis wrote: >> > > > Date: Fri, 20 Sep 2019 02:55:27 -0700 >> > > > From: Mike Larkin <[email protected]> >> > > > >> > > > On Fri, Sep 20, 2019 at 01:09:56AM +0900, YASUOKA Masahiko wrote: >> > > > > Hi, >> > > > > >> > > > > I recently got a VAIO Pro PK. The diff below is required to boot. >> > > > > Without the diff, it freezes during boot. >> > > > > >> > > > >> > > > > Its EFI framebuffer is located 0x4000000000 (9 zeros). This is > 4GB >> > > > > and higher than highest available memory of the machine. These >> > > > > configuraions seem to cause the problem. >> > > > > >> > > > > * * * >> > > > > >> > > > > Call cninit() after pmap_bootstrap() is called. Since the EFI >> > > > > framebuffer may be located > 4GB which is not initialized by locore, >> > > > > but by pmap_bootstrap(). Also make the address parameter passed to >> > > > > pmap_bootstrap() cover the framebuffer. Actually VAIO pro PK's >> > > > > framebuffer is located higher than the highest available memory >> > > > > region. >> > > > > >> > > > > ok? comments? >> > > > > >> > > > >> > > > Hi, >> > > > >> > > > I have a few questions... >> > > > >> > > > 1. There seems to be no limit on the max PA that we extend to here. >> > > > This means, for example, if EFI places the framebuffer past 2TB >> > > > PA, we won't have enough direct map to cover the mapping. Plus >> > > > I think this will end up extending the direct map to cover any hole >> > > > between "end of phys mem" and "efi fb addr". At a minimum, I think >> > > > we need some sort of max PA clamp here. I don't know what Sony's >> > > > placement algorithm is, but 0x4000000000 is 256GB PA. >> > > >> > > A dmesg and pcidump output would be useful. Attached them at the bottom. >> > > I suspect that this is a discrete graphics card where the EFI frame >> > > buffer resides in VRAM. Using the direct map in this case is probably >> > > not the right thing to do. >> > > >> > > > 2. What does delaying cninit do for machines that have errors or >> > > > printfs before this? Would those even print anymore? This would >> > > > affect all machines, even those without efifb, correct? >> > > >> > > Yes and no. It doesn't affect the classic VGA glass console, but it >> > > does mean serial output might disappear. That isn't acceptable I'd >> > > say. >> > > >> > > > 3. I am not a big fan of placing device-specific quirks in >> > > > init_x86_64. Could this not be done in the efifb specific console >> > > > init code? You could pmap_enter whatever you wanted there, based on >> > > > the PA EFI sent you. Or does efifb go through the direct map for >> > > > all video output? If so, we may be stuck creating that big direct >> > > > map >> > > > range. If that's the case though, we should probably try to restrict >> > > > the permissions in the unused holes. >> > > >> > > The direct map is only used early on in the boot process. The frame >> > > buffer is remapped in mainbus_attach() such that we can use >> > > write-combining. But that is done after we print copyright. I think >> > > the remapping could be done a bit earlier, but not before uvm gets >> > > initialized, which happens after we print the copyright message. >> > > >> > > We don't have to use the direct map during early boot. If you gave us >> > > some other way to map the framebuffer before pmap_bootstrap() has been >> > > called we could stick that into efifb_cnattach_common(). We'd need >> > > your help with that though. Note that the framebuffer can be fairly >> > > large though (but we can probably come up with a reasonable upper >> > > limit). >> > >> > What sort of function do you need? Map this PA range at X, but before >> > pmap_bootstrap? >> >> Map this PA range and hand me back the VA where you mapped it, indeed >> before pmap_bootstrap(). >> >> I reckon you'd need to reserve slots in the early page tables for >> this. The mapping needs to be uncached (UC or WC). I suspect we'll >> continue to remap the frame buffer later, UC is fine as we're not >> going to produce massive amounts of output to the console before doing >> so. > > Likely doable, but it will be some time before I can get to it. Thanks, * * * Domain /dev/pci0: 0:0:0: Intel Core 8G Host 0x0000: Vendor ID: 8086, Product ID: 3e34 0x0004: Command: 0006, Status: 2090 0x0008: Class: 06 Bridge, Subclass: 00 Host, Interface: 00, Revision: 0b 0x000c: BIST: 00, Header Type: 00, Latency Timer: 00, Cache Line Size: 00 0x0010: BAR empty (00000000) 0x0014: BAR empty (00000000) 0x0018: BAR empty (00000000) 0x001c: BAR empty (00000000) 0x0020: BAR empty (00000000) 0x0024: BAR empty (00000000) 0x0028: Cardbus CIS: 00000000 0x002c: Subsystem Vendor ID: 1d19 Product ID: 000f 0x0030: Expansion ROM Base Address: 00000000 0x0038: 00000000 0x003c: Interrupt Pin: 00 Line: 00 Min Gnt: 00 Max Lat: 00 0x00e0: Capability 0x09: Vendor Specific 0:2:0: Intel UHD Graphics 620 0x0000: Vendor ID: 8086, Product ID: 3ea0 0x0004: Command: 0007, Status: 0010 0x0008: Class: 03 Display, Subclass: 00 VGA, Interface: 00, Revision: 00 0x000c: BIST: 00, Header Type: 00, Latency Timer: 00, Cache Line Size: 00 0x0010: BAR mem 64bit addr: 0x0000006000000000/0x01000000 0x0018: BAR mem prefetchable 64bit addr: 0x0000004000000000/0x10000000 0x0020: BAR io addr: 0x00003000/0x0040 0x0024: BAR empty (00000000) 0x0028: Cardbus CIS: 00000000 0x002c: Subsystem Vendor ID: 1d19 Product ID: 000f 0x0030: Expansion ROM Base Address: 00000000 0x0038: 00000000 0x003c: Interrupt Pin: 01 Line: ff Min Gnt: 00 Max Lat: 00 0x0040: Capability 0x09: Vendor Specific 0x0070: Capability 0x10: PCI Express 0x0100: Enhanced Capability 0x1b: Process Address Space ID 0x0200: Enhanced Capability 0x0f: Address Translation Services 0x0300: Enhanced Capability 0x13: Page Request Interface 0x00ac: Capability 0x05: Message Signalled Interrupts (MSI) Enabled: yes 0x00d0: Capability 0x01: Power Management State: D0 0:18:0: Intel 300 Series Thermal 0x0000: Vendor ID: 8086, Product ID: 9df9 0x0004: Command: 0002, Status: 0010 0x0008: Class: 11 DASP, Subclass: 80 Miscellaneous, Interface: 00, Revision: 30 0x000c: BIST: 00, Header Type: 80, Latency Timer: 00, Cache Line Size: 00 0x0010: BAR mem 64bit addr: 0x000000600111a000/0x00001000 0x0018: BAR empty (00000000) 0x001c: BAR empty (00000000) 0x0020: BAR empty (00000000) 0x0024: BAR empty (00000000) 0x0028: Cardbus CIS: 00000000 0x002c: Subsystem Vendor ID: 1d19 Product ID: 000f 0x0030: Expansion ROM Base Address: 00000000 0x0038: 00000000 0x003c: Interrupt Pin: 01 Line: ff Min Gnt: 00 Max Lat: 00 0x0050: Capability 0x01: Power Management State: D0 0x0080: Capability 0x05: Message Signalled Interrupts (MSI) Enabled: no 0:20:0: Intel 300 Series xHCI 0x0000: Vendor ID: 8086, Product ID: 9ded 0x0004: Command: 0006, Status: 0290 0x0008: Class: 0c Serial Bus, Subclass: 03 USB, Interface: 30, Revision: 30 0x000c: BIST: 00, Header Type: 80, Latency Timer: 00, Cache Line Size: 00 0x0010: BAR mem 64bit addr: 0x0000006001100000/0x00010000 0x0018: BAR empty (00000000) 0x001c: BAR empty (00000000) 0x0020: BAR empty (00000000) 0x0024: BAR empty (00000000) 0x0028: Cardbus CIS: 00000000 0x002c: Subsystem Vendor ID: 1d19 Product ID: 000f 0x0030: Expansion ROM Base Address: 00000000 0x0038: 00000000 0x003c: Interrupt Pin: 01 Line: ff Min Gnt: 00 Max Lat: 00 0x0070: Capability 0x01: Power Management State: D0 0x0080: Capability 0x05: Message Signalled Interrupts (MSI) Enabled: yes 0x0090: Capability 0x09: Vendor Specific 0:20:2: Intel 300 Series Shared SRAM 0x0000: Vendor ID: 8086, Product ID: 9def 0x0004: Command: 0000, Status: 0010 0x0008: Class: 05 Memory, Subclass: 00 RAM, Interface: 00, Revision: 30 0x000c: BIST: 00, Header Type: 00, Latency Timer: 00, Cache Line Size: 00 0x0010: BAR mem 64bit addr: 0x0000006001114000/0x00002000 0x0018: BAR mem 64bit addr: 0x0000006001119000/0x00001000 0x0020: BAR empty (00000000) 0x0024: BAR empty (00000000) 0x0028: Cardbus CIS: 00000000 0x002c: Subsystem Vendor ID: 0000 Product ID: 0000 0x0030: Expansion ROM Base Address: 00000000 0x0038: 00000000 0x003c: Interrupt Pin: 00 Line: ff Min Gnt: 00 Max Lat: 00 0x0080: Capability 0x01: Power Management State: D0 0:21:0: Intel 300 Series I2C 0x0000: Vendor ID: 8086, Product ID: 9de8 0x0004: Command: 0006, Status: 0010 0x0008: Class: 0c Serial Bus, Subclass: 80 (unknown), Interface: 00, Revision: 30 0x000c: BIST: 00, Header Type: 80, Latency Timer: 00, Cache Line Size: 00 0x0010: BAR mem 64bit addr: 0x0000006001118000/0x00001000 0x0018: BAR empty (00000000) 0x001c: BAR empty (00000000) 0x0020: BAR empty (00000000) 0x0024: BAR empty (00000000) 0x0028: Cardbus CIS: 00000000 0x002c: Subsystem Vendor ID: 1d19 Product ID: 000f 0x0030: Expansion ROM Base Address: 00000000 0x0038: 00000000 0x003c: Interrupt Pin: 01 Line: ff Min Gnt: 00 Max Lat: 00 0x0080: Capability 0x01: Power Management State: D0 0x0090: Capability 0x09: Vendor Specific 0:22:0: Intel 300 Series MEI 0x0000: Vendor ID: 8086, Product ID: 9de0 0x0004: Command: 0000, Status: 0010 0x0008: Class: 07 Communications, Subclass: 80 Miscellaneous, Interface: 00, Revision: 30 0x000c: BIST: 00, Header Type: 80, Latency Timer: 00, Cache Line Size: 00 0x0010: BAR mem 64bit addr: 0x0000006001117000/0x00001000 0x0018: BAR empty (00000000) 0x001c: BAR empty (00000000) 0x0020: BAR empty (00000000) 0x0024: BAR empty (00000000) 0x0028: Cardbus CIS: 00000000 0x002c: Subsystem Vendor ID: 1d19 Product ID: 000f 0x0030: Expansion ROM Base Address: 00000000 0x0038: 00000000 0x003c: Interrupt Pin: 01 Line: ff Min Gnt: 00 Max Lat: 00 0x0050: Capability 0x01: Power Management State: D0 0x008c: Capability 0x05: Message Signalled Interrupts (MSI) Enabled: no 0x00a4: Capability 0x09: Vendor Specific 0:28:0: Intel 300 Series PCIE 0x0000: Vendor ID: 8086, Product ID: 9db8 0x0004: Command: 0007, Status: 0010 0x0008: Class: 06 Bridge, Subclass: 04 PCI, Interface: 00, Revision: f0 0x000c: BIST: 00, Header Type: 81, Latency Timer: 00, Cache Line Size: 00 0x0010: BAR empty (00000000) 0x0014: BAR empty (00000000) 0x0018: Primary Bus: 0, Secondary Bus: 1, Subordinate Bus: 1, Secondary Latency Timer: 00 0x001c: I/O Base: f0, I/O Limit: 00, Secondary Status: 2000 0x0020: Memory Base: fff0, Memory Limit: 0000 0x0024: Prefetch Memory Base: fff1, Prefetch Memory Limit: 0001 0x0028: Prefetch Memory Base Upper 32 Bits: ffffffff 0x002c: Prefetch Memory Limit Upper 32 Bits: 00000000 0x0030: I/O Base Upper 16 Bits: 0000, I/O Limit Upper 16 Bits: 0000 0x0038: Expansion ROM Base Address: 00000000 0x003c: Interrupt Pin: 00, Line: ff, Bridge Control: 0000 0x0040: Capability 0x10: PCI Express Link Speed: 2.5 / 8.0 GT/s, Link Width: x0 / x1 0x0100: Enhanced Capability 0x00: Unknown 0x0080: Capability 0x05: Message Signalled Interrupts (MSI) Enabled: no 0x0090: Capability 0x0d: PCI-PCI 0x00a0: Capability 0x01: Power Management State: D0 0:28:6: Intel 300 Series PCIE 0x0000: Vendor ID: 8086, Product ID: 9dbe 0x0004: Command: 0007, Status: 0010 0x0008: Class: 06 Bridge, Subclass: 04 PCI, Interface: 00, Revision: f0 0x000c: BIST: 00, Header Type: 81, Latency Timer: 00, Cache Line Size: 00 0x0010: BAR empty (00000000) 0x0014: BAR empty (00000000) 0x0018: Primary Bus: 0, Secondary Bus: 2, Subordinate Bus: 2, Secondary Latency Timer: 00 0x001c: I/O Base: f0, I/O Limit: 00, Secondary Status: 2000 0x0020: Memory Base: 8f80, Memory Limit: 8f90 0x0024: Prefetch Memory Base: fff1, Prefetch Memory Limit: 0001 0x0028: Prefetch Memory Base Upper 32 Bits: ffffffff 0x002c: Prefetch Memory Limit Upper 32 Bits: 00000000 0x0030: I/O Base Upper 16 Bits: 0000, I/O Limit Upper 16 Bits: 0000 0x0038: Expansion ROM Base Address: 00000000 0x003c: Interrupt Pin: 03, Line: ff, Bridge Control: 0000 0x0040: Capability 0x10: PCI Express Link Speed: 2.5 / 8.0 GT/s, Link Width: x1 / x1 0x0100: Enhanced Capability 0x01: Advanced Error Reporting 0x0140: Enhanced Capability 0x0d: Access Control Services 0x0150: Enhanced Capability 0x1f: Precision Time Measurement 0x0200: Enhanced Capability 0x1e: L1 PM 0x0220: Enhanced Capability 0x19: Secondary PCIe Capability 0x0250: Enhanced Capability 0x1d: Downstream Port Containment 0x0080: Capability 0x05: Message Signalled Interrupts (MSI) Enabled: yes 0x0090: Capability 0x0d: PCI-PCI 0x00a0: Capability 0x01: Power Management State: D0 0:28:7: Intel 300 Series PCIE 0x0000: Vendor ID: 8086, Product ID: 9dbf 0x0004: Command: 0007, Status: 0010 0x0008: Class: 06 Bridge, Subclass: 04 PCI, Interface: 00, Revision: f0 0x000c: BIST: 00, Header Type: 81, Latency Timer: 00, Cache Line Size: 00 0x0010: BAR empty (00000000) 0x0014: BAR empty (00000000) 0x0018: Primary Bus: 0, Secondary Bus: 3, Subordinate Bus: 3, Secondary Latency Timer: 00 0x001c: I/O Base: f0, I/O Limit: 00, Secondary Status: 2000 0x0020: Memory Base: 8fc0, Memory Limit: 8fc0 0x0024: Prefetch Memory Base: fff1, Prefetch Memory Limit: 0001 0x0028: Prefetch Memory Base Upper 32 Bits: ffffffff 0x002c: Prefetch Memory Limit Upper 32 Bits: 00000000 0x0030: I/O Base Upper 16 Bits: 0000, I/O Limit Upper 16 Bits: 0000 0x0038: Expansion ROM Base Address: 00000000 0x003c: Interrupt Pin: 04, Line: ff, Bridge Control: 0000 0x0040: Capability 0x10: PCI Express Link Speed: 2.5 / 8.0 GT/s, Link Width: x1 / x1 0x0100: Enhanced Capability 0x01: Advanced Error Reporting 0x0140: Enhanced Capability 0x0d: Access Control Services 0x0150: Enhanced Capability 0x1f: Precision Time Measurement 0x0200: Enhanced Capability 0x1e: L1 PM 0x0220: Enhanced Capability 0x19: Secondary PCIe Capability 0x0250: Enhanced Capability 0x1d: Downstream Port Containment 0x0080: Capability 0x05: Message Signalled Interrupts (MSI) Enabled: yes 0x0090: Capability 0x0d: PCI-PCI 0x00a0: Capability 0x01: Power Management State: D0 0:29:0: Intel 300 Series PCIE 0x0000: Vendor ID: 8086, Product ID: 9db0 0x0004: Command: 0007, Status: 0010 0x0008: Class: 06 Bridge, Subclass: 04 PCI, Interface: 00, Revision: f0 0x000c: BIST: 00, Header Type: 81, Latency Timer: 00, Cache Line Size: 00 0x0010: BAR empty (00000000) 0x0014: BAR empty (00000000) 0x0018: Primary Bus: 0, Secondary Bus: 4, Subordinate Bus: 4, Secondary Latency Timer: 00 0x001c: I/O Base: f0, I/O Limit: 00, Secondary Status: 2000 0x0020: Memory Base: 8fb0, Memory Limit: 8fb0 0x0024: Prefetch Memory Base: fff1, Prefetch Memory Limit: 0001 0x0028: Prefetch Memory Base Upper 32 Bits: ffffffff 0x002c: Prefetch Memory Limit Upper 32 Bits: 00000000 0x0030: I/O Base Upper 16 Bits: 0000, I/O Limit Upper 16 Bits: 0000 0x0038: Expansion ROM Base Address: 00000000 0x003c: Interrupt Pin: 01, Line: ff, Bridge Control: 0000 0x0040: Capability 0x10: PCI Express Link Speed: 5.0 / 8.0 GT/s, Link Width: x4 / x4 0x0100: Enhanced Capability 0x01: Advanced Error Reporting 0x0140: Enhanced Capability 0x0d: Access Control Services 0x0150: Enhanced Capability 0x1f: Precision Time Measurement 0x0200: Enhanced Capability 0x1e: L1 PM 0x0220: Enhanced Capability 0x19: Secondary PCIe Capability 0x0250: Enhanced Capability 0x1d: Downstream Port Containment 0x0080: Capability 0x05: Message Signalled Interrupts (MSI) Enabled: yes 0x0090: Capability 0x0d: PCI-PCI 0x00a0: Capability 0x01: Power Management State: D0 0:29:4: Intel 300 Series PCIE 0x0000: Vendor ID: 8086, Product ID: 9db4 0x0004: Command: 0007, Status: 0010 0x0008: Class: 06 Bridge, Subclass: 04 PCI, Interface: 00, Revision: f0 0x000c: BIST: 00, Header Type: 81, Latency Timer: 00, Cache Line Size: 00 0x0010: BAR empty (00000000) 0x0014: BAR empty (00000000) 0x0018: Primary Bus: 0, Secondary Bus: 5, Subordinate Bus: 5, Secondary Latency Timer: 00 0x001c: I/O Base: 20, I/O Limit: 20, Secondary Status: 2000 0x0020: Memory Base: 8fa0, Memory Limit: 8fa0 0x0024: Prefetch Memory Base: fff1, Prefetch Memory Limit: 0001 0x0028: Prefetch Memory Base Upper 32 Bits: ffffffff 0x002c: Prefetch Memory Limit Upper 32 Bits: 00000000 0x0030: I/O Base Upper 16 Bits: 0000, I/O Limit Upper 16 Bits: 0000 0x0038: Expansion ROM Base Address: 00000000 0x003c: Interrupt Pin: 01, Line: ff, Bridge Control: 0000 0x0040: Capability 0x10: PCI Express Link Speed: 2.5 / 8.0 GT/s, Link Width: x1 / x1 0x0100: Enhanced Capability 0x01: Advanced Error Reporting 0x0140: Enhanced Capability 0x0d: Access Control Services 0x0150: Enhanced Capability 0x1f: Precision Time Measurement 0x0200: Enhanced Capability 0x1e: L1 PM 0x0220: Enhanced Capability 0x19: Secondary PCIe Capability 0x0250: Enhanced Capability 0x1d: Downstream Port Containment 0x0080: Capability 0x05: Message Signalled Interrupts (MSI) Enabled: yes 0x0090: Capability 0x0d: PCI-PCI 0x00a0: Capability 0x01: Power Management State: D0 0:31:0: Intel 300 Series LPC 0x0000: Vendor ID: 8086, Product ID: 9d84 0x0004: Command: 0007, Status: 0200 0x0008: Class: 06 Bridge, Subclass: 01 ISA, Interface: 00, Revision: 30 0x000c: BIST: 00, Header Type: 80, Latency Timer: 00, Cache Line Size: 00 0x0010: BAR empty (00000000) 0x0014: BAR empty (00000000) 0x0018: BAR empty (00000000) 0x001c: BAR empty (00000000) 0x0020: BAR empty (00000000) 0x0024: BAR empty (00000000) 0x0028: Cardbus CIS: 00000000 0x002c: Subsystem Vendor ID: 1d19 Product ID: 000f 0x0030: Expansion ROM Base Address: 00000000 0x0038: 00000000 0x003c: Interrupt Pin: 00 Line: 00 Min Gnt: 00 Max Lat: 00 0:31:3: Intel 300 Series HD Audio 0x0000: Vendor ID: 8086, Product ID: 9dc8 0x0004: Command: 0006, Status: 0010 0x0008: Class: 04 (unknown), Subclass: 03 (unknown), Interface: 00, Revision: 30 0x000c: BIST: 00, Header Type: 00, Latency Timer: 00, Cache Line Size: 00 0x0010: BAR mem 64bit addr: 0x0000006001110000/0x00004000 0x0018: BAR empty (00000000) 0x001c: BAR empty (00000000) 0x0020: BAR mem 64bit addr: 0x0000006001000000/0x00100000 0x0028: Cardbus CIS: 00000000 0x002c: Subsystem Vendor ID: 1d19 Product ID: 000f 0x0030: Expansion ROM Base Address: 00000000 0x0038: 00000000 0x003c: Interrupt Pin: 01 Line: ff Min Gnt: 00 Max Lat: 00 0x0050: Capability 0x01: Power Management State: D0 0x0080: Capability 0x09: Vendor Specific 0x0060: Capability 0x05: Message Signalled Interrupts (MSI) Enabled: yes 0:31:4: Intel 300 Series SMBus 0x0000: Vendor ID: 8086, Product ID: 9da3 0x0004: Command: 0001, Status: 0280 0x0008: Class: 0c Serial Bus, Subclass: 05 SMBus, Interface: 00, Revision: 30 0x000c: BIST: 00, Header Type: 00, Latency Timer: 00, Cache Line Size: 00 0x0010: BAR mem 64bit addr: 0x0000006001116000/0x00000100 0x0018: BAR empty (00000000) 0x001c: BAR empty (00000000) 0x0020: BAR io addr: 0x0000efa0/0x0020 0x0024: BAR empty (00000000) 0x0028: Cardbus CIS: 00000000 0x002c: Subsystem Vendor ID: 1d19 Product ID: 000f 0x0030: Expansion ROM Base Address: 00000000 0x0038: 00000000 0x003c: Interrupt Pin: 01 Line: ff Min Gnt: 00 Max Lat: 00 0:31:5: Intel 300 Series SPI 0x0000: Vendor ID: 8086, Product ID: 9da4 0x0004: Command: 0402, Status: 0000 0x0008: Class: 0c Serial Bus, Subclass: 80 (unknown), Interface: 00, Revision: 30 0x000c: BIST: 00, Header Type: 00, Latency Timer: 00, Cache Line Size: 00 0x0010: BAR mem 32bit addr: 0x00000000/0x00001000 0x0014: BAR empty (00000000) 0x0018: BAR empty (00000000) 0x001c: BAR empty (00000000) 0x0020: BAR empty (00000000) 0x0024: BAR empty (00000000) 0x0028: Cardbus CIS: 00000000 0x002c: Subsystem Vendor ID: 1d19 Product ID: 000f 0x0030: Expansion ROM Base Address: 00000000 0x0038: 00000000 0x003c: Interrupt Pin: 00 Line: 00 Min Gnt: 00 Max Lat: 00 2:0:0: Atheros unknown 0x0000: Vendor ID: 168c, Product ID: 003e 0x0004: Command: 0000, Status: 0010 0x0008: Class: 02 Network, Subclass: 80 Miscellaneous, Interface: 00, Revision: 32 0x000c: BIST: 00, Header Type: 00, Latency Timer: 00, Cache Line Size: 00 0x0010: BAR mem 64bit addr: 0x000000008f800000/0x00200000 0x0018: BAR empty (00000000) 0x001c: BAR empty (00000000) 0x0020: BAR empty (00000000) 0x0024: BAR empty (00000000) 0x0028: Cardbus CIS: 00000000 0x002c: Subsystem Vendor ID: 105b Product ID: e0a2 0x0030: Expansion ROM Base Address: 00000000 0x0038: 00000000 0x003c: Interrupt Pin: 01 Line: ff Min Gnt: 00 Max Lat: 00 0x0040: Capability 0x01: Power Management State: D0 0x0050: Capability 0x05: Message Signalled Interrupts (MSI) Enabled: no 0x0070: Capability 0x10: PCI Express Link Speed: 2.5 / 2.5 GT/s, Link Width: x1 / x1 0x0100: Enhanced Capability 0x01: Advanced Error Reporting 0x0148: Enhanced Capability 0x02: Virtual Channel Capability 0x0168: Enhanced Capability 0x03: Device Serial Number Serial Number: 0000000000000000 0x0178: Enhanced Capability 0x18: Latency Tolerance Reporting 0x0180: Enhanced Capability 0x1e: L1 PM 3:0:0: Realtek RTS522A Card Reader 0x0000: Vendor ID: 10ec, Product ID: 522a 0x0004: Command: 0006, Status: 0010 0x0008: Class: ff (unknown), Subclass: 00 (unknown), Interface: 00, Revision: 01 0x000c: BIST: 00, Header Type: 00, Latency Timer: 00, Cache Line Size: 00 0x0010: BAR mem 32bit addr: 0x8fc00000/0x00001000 0x0014: BAR empty (00000000) 0x0018: BAR empty (00000000) 0x001c: BAR empty (00000000) 0x0020: BAR empty (00000000) 0x0024: BAR empty (00000000) 0x0028: Cardbus CIS: 00000000 0x002c: Subsystem Vendor ID: 1d19 Product ID: 000f 0x0030: Expansion ROM Base Address: 00000000 0x0038: 00000000 0x003c: Interrupt Pin: 01 Line: ff Min Gnt: 00 Max Lat: 00 0x0040: Capability 0x01: Power Management State: D0 0x0050: Capability 0x05: Message Signalled Interrupts (MSI) Enabled: yes 0x0070: Capability 0x10: PCI Express Link Speed: 2.5 / 2.5 GT/s, Link Width: x1 / x1 0x0100: Enhanced Capability 0x01: Advanced Error Reporting 0x0140: Enhanced Capability 0x03: Device Serial Number Serial Number: 00000001004ce000 0x0150: Enhanced Capability 0x18: Latency Tolerance Reporting 0x0158: Enhanced Capability 0x1e: L1 PM 4:0:0: Samsung SM981/PM981 NVMe 0x0000: Vendor ID: 144d, Product ID: a808 0x0004: Command: 0006, Status: 0010 0x0008: Class: 01 Mass Storage, Subclass: 08 NVM, Interface: 02, Revision: 00 0x000c: BIST: 00, Header Type: 00, Latency Timer: 00, Cache Line Size: 00 0x0010: BAR mem 64bit addr: 0x000000008fb00000/0x00004000 0x0018: BAR empty (00000000) 0x001c: BAR empty (00000000) 0x0020: BAR empty (00000000) 0x0024: BAR empty (00000000) 0x0028: Cardbus CIS: 00000000 0x002c: Subsystem Vendor ID: 144d Product ID: a801 0x0030: Expansion ROM Base Address: 00000000 0x0038: 00000000 0x003c: Interrupt Pin: 01 Line: ff Min Gnt: 00 Max Lat: 00 0x0040: Capability 0x01: Power Management State: D0 0x0050: Capability 0x05: Message Signalled Interrupts (MSI) Enabled: no 0x0070: Capability 0x10: PCI Express Link Speed: 5.0 / 8.0 GT/s, Link Width: x4 / x4 0x0100: Enhanced Capability 0x01: Advanced Error Reporting 0x0148: Enhanced Capability 0x03: Device Serial Number Serial Number: 0000000000000000 0x0158: Enhanced Capability 0x04: Power Budgeting 0x0168: Enhanced Capability 0x19: Secondary PCIe Capability 0x0188: Enhanced Capability 0x18: Latency Tolerance Reporting 0x0190: Enhanced Capability 0x1e: L1 PM 0x00b0: Capability 0x11: Extended Message Signalled Interrupts (MSI-X) Enabled: yes; table size 33 (BAR 0:12288) 5:0:0: Realtek 8168 0x0000: Vendor ID: 10ec, Product ID: 8168 0x0004: Command: 0007, Status: 0010 0x0008: Class: 02 Network, Subclass: 00 Ethernet, Interface: 00, Revision: 15 0x000c: BIST: 00, Header Type: 00, Latency Timer: 00, Cache Line Size: 00 0x0010: BAR io addr: 0x00002000/0x0100 0x0014: BAR empty (00000000) 0x0018: BAR mem 64bit addr: 0x000000008fa04000/0x00001000 0x0020: BAR mem 64bit addr: 0x000000008fa00000/0x00004000 0x0028: Cardbus CIS: 00000000 0x002c: Subsystem Vendor ID: 1d19 Product ID: 000f 0x0030: Expansion ROM Base Address: 00000000 0x0038: 00000000 0x003c: Interrupt Pin: 01 Line: ff Min Gnt: 00 Max Lat: 00 0x0040: Capability 0x01: Power Management State: D0 PME# enabled 0x0050: Capability 0x05: Message Signalled Interrupts (MSI) Enabled: yes 0x0070: Capability 0x10: PCI Express Link Speed: 2.5 / 2.5 GT/s, Link Width: x1 / x1 0x0100: Enhanced Capability 0x01: Advanced Error Reporting 0x0140: Enhanced Capability 0x02: Virtual Channel Capability 0x0160: Enhanced Capability 0x03: Device Serial Number Serial Number: 01000000684ce000 0x0170: Enhanced Capability 0x18: Latency Tolerance Reporting 0x0178: Enhanced Capability 0x1e: L1 PM 0x00b0: Capability 0x11: Extended Message Signalled Interrupts (MSI-X) Enabled: no; table size 4 (BAR 4:0) * * * OpenBSD 6.6-beta (GENERIC.MP) #104: Fri Sep 20 15:33:36 JST 2019 [email protected]:/home/yasuoka/src/sys/arch/amd64/compile/GENERIC.MP real mem = 8340688896 (7954MB) avail mem = 8006545408 (7635MB) mpath0 at root scsibus0 at mpath0: 256 targets mainbus0 at root bios0 at mainbus0: SMBIOS rev. 3.1 @ 0x86df0000 (21 entries) bios0: vendor Phoenix Technologies Ltd. version "R1070CW" date 06/14/2019 bios0: VAIO Corporation VJPK11C11N acpi0 at bios0: ACPI 6.1 acpi0: sleep states S0 S3 S4 S5 acpi0: tables DSDT FACP SSDT SSDT SSDT SSDT TPM2 UEFI HPET APIC MCFG SSDT BOOT SSDT LPIT WSMT SSDT DBGP DBG2 MSDM BATB DMAR SSDT FPDT UEFI SSDT BGRT acpi0: wakeup devices XHC_(S3) HDAS(S4) RP01(S4) PXSX(S4) RP02(S4) PXSX(S4) RP03(S4) PXSX(S4) RP04(S4) PXSX(S4) RP05(S4) PXSX(S4) RP06(S4) PXSX(S4) RP07(S4) PXSX(S4) [...] acpitimer0 at acpi0: 3579545 Hz, 24 bits acpihpet0 at acpi0: 23999999 Hz acpimadt0 at acpi0 addr 0xfee00000: PC-AT compat cpu0 at mainbus0: apid 0 (boot processor) cpu0: Intel(R) Core(TM) i5-8265U CPU @ 1.60GHz, 3881.14 MHz, 06-8e-0b cpu0: FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,PCLMUL,DTES64,MWAIT,DS-CPL,VMX,EST,TM2,SSSE3,SDBG,FMA3,CX16,xTPR,PDCM,PCID,SSE4.1,SSE4.2,x2APIC,MOVBE,POPCNT,DEADLINE,AES,XSAVE,AVX,F16C,RDRAND,NXE,PAGE1GB,RDTSCP,LONG,LAHF,ABM,3DNOWP,PERF,ITSC,FSGSBASE,TSC_ADJUST,SGX,BMI1,AVX2,SMEP,BMI2,ERMS,INVPCID,MPX,RDSEED,ADX,SMAP,CLFLUSHOPT,PT,MD_CLEAR,TSXFA,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,ARAT,XSAVEOPT,XSAVEC,XGETBV1,XSAVES cpu0: 256KB 64b/line 8-way L2 cache tsc_timecounter_init: TSC skew=0 observed drift=0 cpu0: smt 0, core 0, package 0 mtrr: Pentium Pro MTRR support, 10 var ranges, 88 fixed ranges cpu0: apic clock running at 24MHz cpu0: mwait min=64, max=64, C-substates=0.2.1.2.4.1.1.1, IBE cpu1 at mainbus0: apid 2 (application processor) TSC skew=0 cpu1: Intel(R) Core(TM) i5-8265U CPU @ 1.60GHz, 3780.13 MHz, 06-8e-0b cpu1: FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,PCLMUL,DTES64,MWAIT,DS-CPL,VMX,EST,TM2,SSSE3,SDBG,FMA3,CX16,xTPR,PDCM,PCID,SSE4.1,SSE4.2,x2APIC,MOVBE,POPCNT,DEADLINE,AES,XSAVE,AVX,F16C,RDRAND,NXE,PAGE1GB,RDTSCP,LONG,LAHF,ABM,3DNOWP,PERF,ITSC,FSGSBASE,TSC_ADJUST,SGX,BMI1,AVX2,SMEP,BMI2,ERMS,INVPCID,MPX,RDSEED,ADX,SMAP,CLFLUSHOPT,PT,MD_CLEAR,TSXFA,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,ARAT,XSAVEOPT,XSAVEC,XGETBV1,XSAVES cpu1: 256KB 64b/line 8-way L2 cache tsc_timecounter_init: TSC skew=0 observed drift=0 cpu1: smt 0, core 1, package 0 cpu2 at mainbus0: apid 4 (application processor) TSC skew=-1 cpu2: Intel(R) Core(TM) i5-8265U CPU @ 1.60GHz, 3679.93 MHz, 06-8e-0b cpu2: FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,PCLMUL,DTES64,MWAIT,DS-CPL,VMX,EST,TM2,SSSE3,SDBG,FMA3,CX16,xTPR,PDCM,PCID,SSE4.1,SSE4.2,x2APIC,MOVBE,POPCNT,DEADLINE,AES,XSAVE,AVX,F16C,RDRAND,NXE,PAGE1GB,RDTSCP,LONG,LAHF,ABM,3DNOWP,PERF,ITSC,FSGSBASE,TSC_ADJUST,SGX,BMI1,AVX2,SMEP,BMI2,ERMS,INVPCID,MPX,RDSEED,ADX,SMAP,CLFLUSHOPT,PT,MD_CLEAR,TSXFA,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,ARAT,XSAVEOPT,XSAVEC,XGETBV1,XSAVES cpu2: 256KB 64b/line 8-way L2 cache tsc_timecounter_init: TSC skew=-1 observed drift=0 cpu2: smt 0, core 2, package 0 cpu3 at mainbus0: apid 6 (application processor) TSC skew=-3 cpu3: Intel(R) Core(TM) i5-8265U CPU @ 1.60GHz, 3680.50 MHz, 06-8e-0b cpu3: FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,PCLMUL,DTES64,MWAIT,DS-CPL,VMX,EST,TM2,SSSE3,SDBG,FMA3,CX16,xTPR,PDCM,PCID,SSE4.1,SSE4.2,x2APIC,MOVBE,POPCNT,DEADLINE,AES,XSAVE,AVX,F16C,RDRAND,NXE,PAGE1GB,RDTSCP,LONG,LAHF,ABM,3DNOWP,PERF,ITSC,FSGSBASE,TSC_ADJUST,SGX,BMI1,AVX2,SMEP,BMI2,ERMS,INVPCID,MPX,RDSEED,ADX,SMAP,CLFLUSHOPT,PT,MD_CLEAR,TSXFA,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,ARAT,XSAVEOPT,XSAVEC,XGETBV1,XSAVES cpu3: 256KB 64b/line 8-way L2 cache tsc_timecounter_init: TSC skew=-3 observed drift=0 cpu3: smt 0, core 3, package 0 cpu4 at mainbus0: apid 1 (application processor) TSC skew=-6 cpu4: Intel(R) Core(TM) i5-8265U CPU @ 1.60GHz, 3680.42 MHz, 06-8e-0b cpu4: FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,PCLMUL,DTES64,MWAIT,DS-CPL,VMX,EST,TM2,SSSE3,SDBG,FMA3,CX16,xTPR,PDCM,PCID,SSE4.1,SSE4.2,x2APIC,MOVBE,POPCNT,DEADLINE,AES,XSAVE,AVX,F16C,RDRAND,NXE,PAGE1GB,RDTSCP,LONG,LAHF,ABM,3DNOWP,PERF,ITSC,FSGSBASE,TSC_ADJUST,SGX,BMI1,AVX2,SMEP,BMI2,ERMS,INVPCID,MPX,RDSEED,ADX,SMAP,CLFLUSHOPT,PT,MD_CLEAR,TSXFA,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,ARAT,XSAVEOPT,XSAVEC,XGETBV1,XSAVES cpu4: 256KB 64b/line 8-way L2 cache tsc_timecounter_init: TSC skew=-6 observed drift=0 cpu4: smt 1, core 0, package 0 cpu5 at mainbus0: apid 3 (application processor) TSC skew=1 cpu5: Intel(R) Core(TM) i5-8265U CPU @ 1.60GHz, 3680.83 MHz, 06-8e-0b cpu5: FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,PCLMUL,DTES64,MWAIT,DS-CPL,VMX,EST,TM2,SSSE3,SDBG,FMA3,CX16,xTPR,PDCM,PCID,SSE4.1,SSE4.2,x2APIC,MOVBE,POPCNT,DEADLINE,AES,XSAVE,AVX,F16C,RDRAND,NXE,PAGE1GB,RDTSCP,LONG,LAHF,ABM,3DNOWP,PERF,ITSC,FSGSBASE,TSC_ADJUST,SGX,BMI1,AVX2,SMEP,BMI2,ERMS,INVPCID,MPX,RDSEED,ADX,SMAP,CLFLUSHOPT,PT,MD_CLEAR,TSXFA,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,ARAT,XSAVEOPT,XSAVEC,XGETBV1,XSAVES cpu5: 256KB 64b/line 8-way L2 cache tsc_timecounter_init: TSC skew=1 observed drift=0 cpu5: smt 1, core 1, package 0 cpu6 at mainbus0: apid 5 (application processor) TSC skew=3 cpu6: Intel(R) Core(TM) i5-8265U CPU @ 1.60GHz, 3680.02 MHz, 06-8e-0b cpu6: FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,PCLMUL,DTES64,MWAIT,DS-CPL,VMX,EST,TM2,SSSE3,SDBG,FMA3,CX16,xTPR,PDCM,PCID,SSE4.1,SSE4.2,x2APIC,MOVBE,POPCNT,DEADLINE,AES,XSAVE,AVX,F16C,RDRAND,NXE,PAGE1GB,RDTSCP,LONG,LAHF,ABM,3DNOWP,PERF,ITSC,FSGSBASE,TSC_ADJUST,SGX,BMI1,AVX2,SMEP,BMI2,ERMS,INVPCID,MPX,RDSEED,ADX,SMAP,CLFLUSHOPT,PT,MD_CLEAR,TSXFA,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,ARAT,XSAVEOPT,XSAVEC,XGETBV1,XSAVES cpu6: 256KB 64b/line 8-way L2 cache tsc_timecounter_init: TSC skew=3 observed drift=0 cpu6: smt 1, core 2, package 0 cpu7 at mainbus0: apid 7 (application processor) TSC skew=-2 cpu7: Intel(R) Core(TM) i5-8265U CPU @ 1.60GHz, 3679.97 MHz, 06-8e-0b cpu7: FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,PCLMUL,DTES64,MWAIT,DS-CPL,VMX,EST,TM2,SSSE3,SDBG,FMA3,CX16,xTPR,PDCM,PCID,SSE4.1,SSE4.2,x2APIC,MOVBE,POPCNT,DEADLINE,AES,XSAVE,AVX,F16C,RDRAND,NXE,PAGE1GB,RDTSCP,LONG,LAHF,ABM,3DNOWP,PERF,ITSC,FSGSBASE,TSC_ADJUST,SGX,BMI1,AVX2,SMEP,BMI2,ERMS,INVPCID,MPX,RDSEED,ADX,SMAP,CLFLUSHOPT,PT,MD_CLEAR,TSXFA,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,ARAT,XSAVEOPT,XSAVEC,XGETBV1,XSAVES cpu7: 256KB 64b/line 8-way L2 cache tsc_timecounter_init: TSC skew=-2 observed drift=0 cpu7: smt 1, core 3, package 0 ioapic0 at mainbus0: apid 2 pa 0xfec00000, version 20, 120 pins acpimcfg0 at acpi0 acpimcfg0: addr 0xe0000000, bus 0-255 acpiprt0 at acpi0: bus 0 (PCI0) acpiprt1 at acpi0: bus 1 (RP01) acpiprt2 at acpi0: bus -1 (RP02) acpiprt3 at acpi0: bus -1 (RP03) acpiprt4 at acpi0: bus -1 (RP04) acpiprt5 at acpi0: bus -1 (RP05) acpiprt6 at acpi0: bus -1 (RP06) acpiprt7 at acpi0: bus 2 (RP07) acpiprt8 at acpi0: bus 3 (RP08) acpiprt9 at acpi0: bus 4 (RP09) acpiprt10 at acpi0: bus -1 (RP10) acpiprt11 at acpi0: bus -1 (RP11) acpiprt12 at acpi0: bus -1 (RP12) acpiprt13 at acpi0: bus 5 (RP13) acpiprt14 at acpi0: bus -1 (RP14) acpiprt15 at acpi0: bus -1 (RP15) acpiprt16 at acpi0: bus -1 (RP16) acpiprt17 at acpi0: bus -1 (RP17) acpiprt18 at acpi0: bus -1 (RP18) acpiprt19 at acpi0: bus -1 (RP19) acpiprt20 at acpi0: bus -1 (RP20) acpiprt21 at acpi0: bus -1 (RP21) acpiprt22 at acpi0: bus -1 (RP22) acpiprt23 at acpi0: bus -1 (RP23) acpiprt24 at acpi0: bus -1 (RP24) acpiec0 at acpi0 acpipwrres0 at acpi0: WRST acpipwrres1 at acpi0: V0PR acpipwrres2 at acpi0: V1PR acpipwrres3 at acpi0: V2PR acpicpu0 at acpi0: C3(200@1034 mwait.1@0x60), C2(200@151 mwait.1@0x33), C1(1000@1 mwait.1), PSS acpicpu1 at acpi0: C3(200@1034 mwait.1@0x60), C2(200@151 mwait.1@0x33), C1(1000@1 mwait.1), PSS acpicpu2 at acpi0: C3(200@1034 mwait.1@0x60), C2(200@151 mwait.1@0x33), C1(1000@1 mwait.1), PSS acpicpu3 at acpi0: C3(200@1034 mwait.1@0x60), C2(200@151 mwait.1@0x33), C1(1000@1 mwait.1), PSS acpicpu4 at acpi0: C3(200@1034 mwait.1@0x60), C2(200@151 mwait.1@0x33), C1(1000@1 mwait.1), PSS acpicpu5 at acpi0: C3(200@1034 mwait.1@0x60), C2(200@151 mwait.1@0x33), C1(1000@1 mwait.1), PSS acpicpu6 at acpi0: C3(200@1034 mwait.1@0x60), C2(200@151 mwait.1@0x33), C1(1000@1 mwait.1), PSS acpicpu7 at acpi0: C3(200@1034 mwait.1@0x60), C2(200@151 mwait.1@0x33), C1(1000@1 mwait.1), PSS acpitz0 at acpi0: critical temperature is 120 degC acpipci0 at acpi0 PCI0: 0x00000000 0x00000011 0x00000001 acpicmos0 at acpi0 "VAI0002" at acpi0 not configured "INT34BB" at acpi0 not configured "ELAN0902" at acpi0 not configured acpibtn0 at acpi0: PWRB acpibtn1 at acpi0: LID0 acpiac0 at acpi0: AC unit online acpibat0 at acpi0: BAT1 model " " serial type LION oem "VAIO Corp. " "PNP0C14" at acpi0 not configured "MSFT0101" at acpi0 not configured "USBC000" at acpi0 not configured "PNP0C14" at acpi0 not configured "VAI0001" at acpi0 not configured acpivideo0 at acpi0: GFX0 acpivout0 at acpivideo0: DD1F cpu0: using VERW MDS workaround cpu0: Enhanced SpeedStep 3881 MHz: speeds: 1801, 1800, 1700, 1600, 1500, 1400, 1300, 1200, 1100, 1000, 900, 800, 700, 600, 500, 400 MHz pci0 at mainbus0 bus 0 0:31:5: mem address conflict 0xfe010000/0x1000 pchb0 at pci0 dev 0 function 0 "Intel Core 8G Host" rev 0x0b inteldrm0 at pci0 dev 2 function 0 "Intel UHD Graphics 620" rev 0x00 drm0 at inteldrm0 inteldrm0: msi "Intel 300 Series Thermal" rev 0x30 at pci0 dev 18 function 0 not configured xhci0 at pci0 dev 20 function 0 "Intel 300 Series xHCI" rev 0x30: msi, xHCI 1.10 usb0 at xhci0: USB revision 3.0 uhub0 at usb0 configuration 1 interface 0 "Intel xHCI root hub" rev 3.00/1.00 addr 1 calling config_pending_incr() explore_pending=0 "Intel 300 Series Shared SRAM" rev 0x30 at pci0 dev 20 function 2 not configured dwiic0 at pci0 dev 21 function 0 "Intel 300 Series I2C" rev 0x30: apic 2 int 16 iic0 at dwiic0 ihidev0 at iic0 addr 0x15 , can't establish interrupt (polling), vendor 0x4f3 product 0x3051, ELAN0902 ihidev0: 93 report ids imt0 at ihidev0: touchpad, 4 contacts wsmouse0 at imt0 mux 0 "Intel 300 Series MEI" rev 0x30 at pci0 dev 22 function 0 not configured ppb0 at pci0 dev 28 function 0 "Intel 300 Series PCIE" rev 0xf0 pci1 at ppb0 bus 1 ppb1 at pci0 dev 28 function 6 "Intel 300 Series PCIE" rev 0xf0: msi pci2 at ppb1 bus 2 vendor "Atheros", unknown product 0x003e (class network subclass miscellaneous, rev 0x32) at pci2 dev 0 function 0 not configured ppb2 at pci0 dev 28 function 7 "Intel 300 Series PCIE" rev 0xf0: msi pci3 at ppb2 bus 3 rtsx0 at pci3 dev 0 function 0 "Realtek RTS522A Card Reader" rev 0x01: msi sdmmc0 at rtsx0: 4-bit, dma ppb3 at pci0 dev 29 function 0 "Intel 300 Series PCIE" rev 0xf0: msi pci4 at ppb3 bus 4 nvme0 at pci4 dev 0 function 0 "Samsung SM981/PM981 NVMe" rev 0x00: msix, NVMe 1.2 nvme0: SAMSUNG MZVLB512HAJQ-00000, firmware EXA7301Q, serial S3W8NX0M601252 scsibus1 at nvme0: 2 targets, initiator 0 sd0 at scsibus1 targ 1 lun 0: <NVMe, SAMSUNG MZVLB512, EXA7> sd0: 488386MB, 512 bytes/sector, 1000215216 sectors ppb4 at pci0 dev 29 function 4 "Intel 300 Series PCIE" rev 0xf0: msi pci5 at ppb4 bus 5 re0 at pci5 dev 0 function 0 "Realtek 8168" rev 0x15: RTL8168H/8111H (0x5400), msi, address cc:30:80:xx:xx:xx rgephy0 at re0 phy 7: RTL8251 PHY, rev. 0 pcib0 at pci0 dev 31 function 0 "Intel 300 Series LPC" rev 0x30 azalia0 at pci0 dev 31 function 3 "Intel 300 Series HD Audio" rev 0x30: msi azalia0: codecs: Realtek/0x0255, Intel/0x280b, using Realtek/0x0255 audio0 at azalia0 ichiic0 at pci0 dev 31 function 4 "Intel 300 Series SMBus" rev 0x30: apic 2 int 16 iic1 at ichiic0 "Intel 300 Series SPI" rev 0x30 at pci0 dev 31 function 5 not configured isa0 at pcib0 isadma0 at isa0 com0 at isa0 port 0x3f8/8 irq 4: ns16550a, 16 byte fifo pckbc0 at isa0 port 0x60/5 irq 1 irq 12 pckbd0 at pckbc0 (kbd slot) wskbd0 at pckbd0: console keyboard pms0 at pckbc0 (aux slot) wsmouse1 at pms0 mux 0 pms0: Elantech Touchpad, version 4, firmware 0x5d4f03 pcppi0 at isa0 port 0x61 spkr0 at pcppi0 vmm0 at mainbus0: VMX/EPT efifb at mainbus0 not configured xhci0: port=2 xhci_event_port_change xhci0: port=3 xhci_event_port_change xhci0: port=5 xhci_event_port_change xhci0: port=7 xhci_event_port_change xhci0: port=10 xhci_event_port_change xhci0: port=2 xhci_event_port_change uhidev0 at uhub0 port 2 configuration 1 interface 0 "Microsoft Microsoft\M-. Nano Transceiver v1.0" rev 2.00/7.44 addr 2 uhidev0: iclass 3/1 ukbd0 at uhidev0: 8 variable keys, 6 key codes wskbd1 at ukbd0 mux 1 uhidev1 at uhub0 port 2 configuration 1 interface 1 "Microsoft Microsoft\M-. Nano Transceiver v1.0" rev 2.00/7.44 addr 2 uhidev1: iclass 3/1, 26 report ids uhid0 at uhidev1 reportid 18: input=0, output=0, feature=1 uhid1 at uhidev1 reportid 23: input=0, output=0, feature=1 ums0 at uhidev1 reportid 26: 5 buttons, Z and W dir wsmouse2 at ums0 mux 0 uhidev2 at uhub0 port 2 configuration 1 interface 2 "Microsoft Microsoft\M-. Nano Transceiver v1.0" rev 2.00/7.44 addr 2 uhidev2: iclass 3/0, 8 report ids uhid2 at uhidev2 reportid 3: input=1, output=0, feature=0 uhid3 at uhidev2 reportid 4: input=1, output=0, feature=0 uhid4 at uhidev2 reportid 7: input=7, output=0, feature=0 uhid5 at uhidev2 reportid 8: input=1, output=0, feature=0 xhci0: port=3 xhci_event_port_change urtwn0 at uhub0 port 3 configuration 1 interface 0 "Realtek 802.11n NIC" rev 2.00/0.00 addr 3 urtwn0: MAC/BB RTL8188EU, RF 6052 1T1R, address d0:37:45:xx:xx:xx xhci0: port=5 xhci_event_port_change ugen0 at uhub0 port 5 "Foxconn product 0xe0a4" rev 2.01/0.01 addr 4 xhci0: port=7 xhci_event_port_change uvideo0 at uhub0 port 7 configuration 1 interface 0 "Generic Front camera" rev 2.00/0.11 addr 5 video0 at uvideo0 xhci0: port=10 xhci_event_port_change ugen1 at uhub0 port 10 "ELAN ELAN:Fingerprint" rev 2.00/1.45 addr 6 calling config_pending_decr() explore_pending=0 vscsi0 at root scsibus2 at vscsi0: 256 targets softraid0 at root scsibus3 at softraid0: 256 targets root on sd0a (5544e96f66f7df37.a) swap on sd0b dump on sd0b inteldrm0: 3840x2160, 32bpp wsdisplay0 at inteldrm0 mux 1: console (std, vt100 emulation), using wskbd0 wskbd1: connecting to wsdisplay0 wsdisplay0: screen 1-5 added (std, vt100 emulation) sd1 at scsibus3 targ 1 lun 0: <OPENBSD, SR CRYPTO, 006> sd1: 225066MB, 512 bytes/sector, 460935408 sectors * * * Result of "machine memory" on efiboot. https://yasuoka.net/~yasuoka/images/2d7bcb645b5c2b3b8d35fac0d3b686dd.jpg
