On 29/05/14 20:48, Olivier Danet wrote:
Hello Mark
- Don't you like green ?
It looks fine for me : http://temlib.org/pub/boot_netbsd6.jpg
- "checkpatch.pl" did not find anything wrong with this patch. I will adjust
style and spacings anyway.
- AFAIU, it is impossible to implement exactly this video board on QEMU with
reasonable performance.
The S24/TCX has a 1Meg * 26 bits framebuffer.
For each pixel, two bits are used for selecting between 256 indexed and 24bits
truecolor.
The RAMDAC/palette handles this selection, as well as an overlay plane for the
cursor
(with 4 additional colours).
This enable handling different "visuals" for each X11 window. Text mode is also
8bits indexed
even on 24bits mode.
The memory is simultaneously accessible at several addresses, with different
alignment :
RDFB32: Each pixel occupies 32bits. D[31:26]=0000_00, D[25:24]=MODE,
D[23:0]=Colour
DFB24 : Each pixel occupies 32bits. D[31:24]=0000_0000, D[23:0]=Colour
DFB8 : Each pixel occupies 8bits, mapped to D[7:0] of the framebuffer.
MODE=D[25:24] (-> datasheet ATT20C567)
00 : 256 colours "pseudocolor" : R=pal_r(D[ 7: 0]) G=pal_g(D[ 7:0])
B=pal_b(D[ 7:0])
01 : 16M colours "directcolor" : R=pal_r(D[ 7: 0]) G=pal_g(D[15:8])
B=pal_b(D[23:16])
10 : 16M colours "truecolor" gamma : R=gamma(D[ 7: 0]) G=gamma(D[15:8])
B=gamma(D[23:16])
11 : 16M colours "truecolor" raw : R= D[ 7: 0] G= D[15:8]
B= D[23:16]
QEMU cannot directly imitate this behavior, so :
- The RDFB32 area is only used for the MODE bits
- 8 colours applications are expected to write only in the DFB8 area
- 24 colours applications are expected to write only in the DFB24 area
- the blitter and stippler accelerators update all areas simultaneously in
24bits mode
- As the 24bits mode is simultaneously both a 8bits and 24bits mode, dirtying
the (smaller) 8bits area
is sufficient.
Olivier
Hi Olivier,
So sorry for the delay on this - I just realised replying to another
email earlier today that I'd totally forgotten about this one :/
Please find attached what I believe is your patch rebased onto git
master, which when applied to my local repository (and using your binary

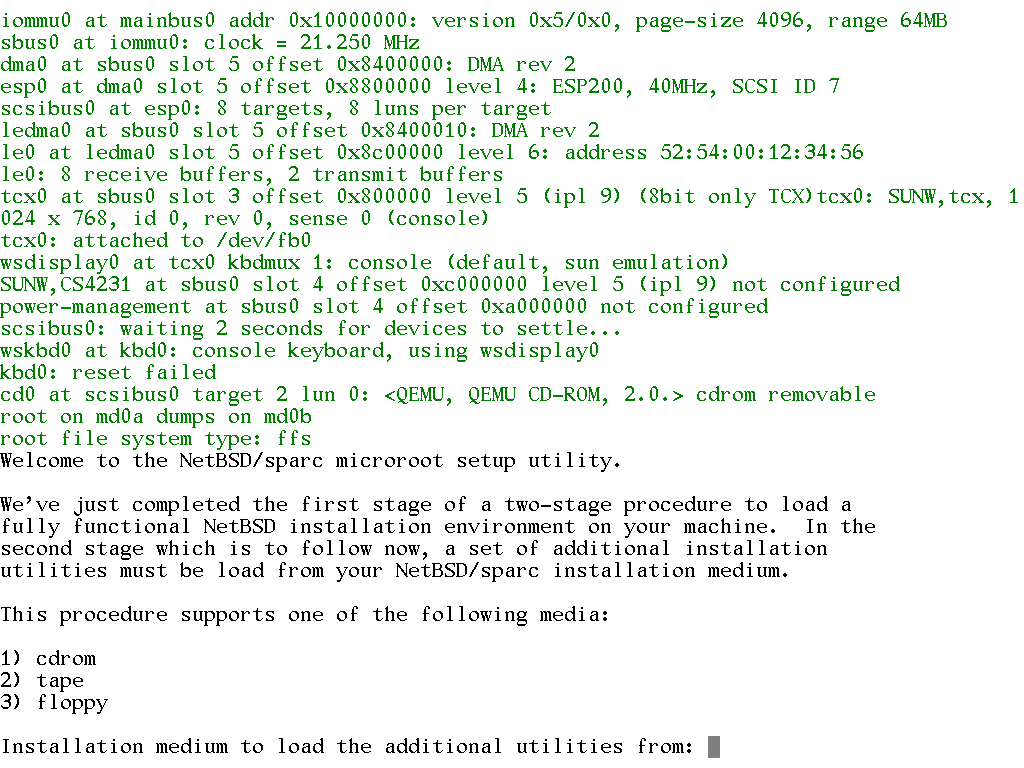

QEMU,tcx.bin from http://temlib.org/pub/QEMU,tcx.bin) gives me the green
text when booting NetBSD 6.1.3 as can be seen at
http://www.ilande.co.uk/tmp/netbsd.png.
Can you double-check and make sure that I haven't accidentally broken
anything during the rebase? It required quite a bit of work to fix up by
hand.
ATB,
Mark.
diff --git a/hw/display/tcx.c b/hw/display/tcx.c
index 28c742c..084bb4c 100644
--- a/hw/display/tcx.c
+++ b/hw/display/tcx.c
@@ -33,17 +33,26 @@
#define MAXX 1024
#define MAXY 768
-#define TCX_DAC_NREGS 16
-#define TCX_THC_NREGS_8 0x081c
-#define TCX_THC_NREGS_24 0x1000
+#define TCX_DAC_NREGS 16
+#define TCX_THC_NREGS 0x1000
+#define TCX_DHC_NREGS 0x4000
#define TCX_TEC_NREGS 0x1000
+#define TCX_ALT_NREGS 0x8000
+#define TCX_STIP_NREGS 0x800000
+#define TCX_BLIT_NREGS 0x800000
+#define TCX_RSTIP_NREGS 0x800000
+#define TCX_RBLIT_NREGS 0x800000
+
+#define TCX_THC_MISC 0x818
+#define TCX_THC_CURSXY 0x8fc
+#define TCX_THC_CURSMASK 0x900
+#define TCX_THC_CURSBITS 0x980
#define TYPE_TCX "SUNW,tcx"
#define TCX(obj) OBJECT_CHECK(TCXState, (obj), TYPE_TCX)
typedef struct TCXState {
SysBusDevice parent_obj;
-
QemuConsole *con;
uint8_t *vram;
uint32_t *vram24, *cplane;
@@ -52,17 +61,30 @@ typedef struct TCXState {
MemoryRegion vram_mem;
MemoryRegion vram_8bit;
MemoryRegion vram_24bit;
+ MemoryRegion stip;
+ MemoryRegion blit;
MemoryRegion vram_cplane;
- MemoryRegion dac;
+ MemoryRegion rstip;
+ MemoryRegion rblit;
MemoryRegion tec;
+ MemoryRegion dac;
+ MemoryRegion thc;
+ MemoryRegion dhc;
+ MemoryRegion alt;
MemoryRegion thc24;
- MemoryRegion thc8;
+
ram_addr_t vram24_offset, cplane_offset;
+ uint32_t tmpblit;
uint32_t vram_size;
- uint32_t palette[256];
- uint8_t r[256], g[256], b[256];
+ uint32_t palette[260];
+ uint8_t r[260], g[260], b[260];
uint16_t width, height, depth;
uint8_t dac_index, dac_state;
+ uint32_t thcmisc;
+ uint32_t cursmask[32];
+ uint32_t cursbits[32];
+ uint16_t cursx;
+ uint16_t cursy;
} TCXState;
static void tcx_set_dirty(TCXState *s)
@@ -70,10 +92,36 @@ static void tcx_set_dirty(TCXState *s)
memory_region_set_dirty(&s->vram_mem, 0, MAXX * MAXY);
}
-static void tcx24_set_dirty(TCXState *s)
+static inline int tcx24_check_dirty(TCXState *s, ram_addr_t page,
+ ram_addr_t page24, ram_addr_t cpage)
+{
+ int ret;
+
+ ret = memory_region_get_dirty(&s->vram_mem, page, TARGET_PAGE_SIZE,
+ DIRTY_MEMORY_VGA);
+ ret |= memory_region_get_dirty(&s->vram_mem, page24, TARGET_PAGE_SIZE * 4,
+ DIRTY_MEMORY_VGA);
+ ret |= memory_region_get_dirty(&s->vram_mem, cpage, TARGET_PAGE_SIZE * 4,
+ DIRTY_MEMORY_VGA);
+ return ret;
+}
+
+static inline void tcx24_reset_dirty(TCXState *ts, ram_addr_t page_min,
+ ram_addr_t page_max, ram_addr_t page24,
+ ram_addr_t cpage)
{
- memory_region_set_dirty(&s->vram_mem, s->vram24_offset, MAXX * MAXY * 4);
- memory_region_set_dirty(&s->vram_mem, s->cplane_offset, MAXX * MAXY * 4);
+ memory_region_reset_dirty(&ts->vram_mem,
+ page_min,
+ (page_max - page_min) + TARGET_PAGE_SIZE,
+ DIRTY_MEMORY_VGA);
+ memory_region_reset_dirty(&ts->vram_mem,
+ page24 + page_min * 4,
+ (page_max - page_min) * 4 + TARGET_PAGE_SIZE,
+ DIRTY_MEMORY_VGA);
+ memory_region_reset_dirty(&ts->vram_mem,
+ cpage + page_min * 4,
+ (page_max - page_min) * 4 + TARGET_PAGE_SIZE,
+ DIRTY_MEMORY_VGA);
}
static void update_palette_entries(TCXState *s, int start, int end)
@@ -102,11 +150,7 @@ static void update_palette_entries(TCXState *s, int start, int end)
break;
}
}
- if (s->depth == 24) {
- tcx24_set_dirty(s);
- } else {
- tcx_set_dirty(s);
- }
+ tcx_set_dirty(s);
}
static void tcx_draw_line32(TCXState *s1, uint8_t *d,
@@ -116,7 +160,7 @@ static void tcx_draw_line32(TCXState *s1, uint8_t *d,
uint8_t val;
uint32_t *p = (uint32_t *)d;
- for(x = 0; x < width; x++) {
+ for (x = 0; x < width; x++) {
val = *s++;
*p++ = s1->palette[val];
}
@@ -129,7 +173,7 @@ static void tcx_draw_line16(TCXState *s1, uint8_t *d,
uint8_t val;
uint16_t *p = (uint16_t *)d;
- for(x = 0; x < width; x++) {
+ for (x = 0; x < width; x++) {
val = *s++;
*p++ = s1->palette[val];
}
@@ -147,6 +191,83 @@ static void tcx_draw_line8(TCXState *s1, uint8_t *d,
}
}
+static void tcx_draw_cursor32(TCXState *s1, uint8_t *d,
+ int y, int width)
+{
+ int x, len;
+ uint32_t mask, bits;
+ uint32_t *p = (uint32_t *)d;
+
+ y = y - s1->cursy;
+ mask = s1->cursmask[y];
+ bits = s1->cursbits[y];
+ len = MIN(width - s1->cursx, 32);
+ p = &p[s1->cursx];
+ for (x = 0; x < len; x++) {
+ if (mask & 0x80000000) {
+ if (bits & 0x80000000) {
+ *p = s1->palette[259];
+ } else {
+ *p = s1->palette[258];
+ }
+ }
+ p++;
+ mask <<= 1;
+ bits <<= 1;
+ }
+}
+
+static void tcx_draw_cursor16(TCXState *s1, uint8_t *d,
+ int y, int width)
+{
+ int x, len;
+ uint32_t mask, bits;
+ uint16_t *p = (uint16_t *)d;
+
+ y = y - s1->cursy;
+ mask = s1->cursmask[y];
+ bits = s1->cursbits[y];
+ len = MIN(width - s1->cursx, 32);
+ p = &p[s1->cursx];
+ for (x = 0; x < len; x++) {
+ if (mask & 0x80000000) {
+ if (bits & 0x80000000) {
+ *p = s1->palette[259];
+ } else {
+ *p = s1->palette[258];
+ }
+ }
+ p++;
+ mask <<= 1;
+ bits <<= 1;
+ }
+}
+
+static void tcx_draw_cursor8(TCXState *s1, uint8_t *d,
+ int y, int width)
+{
+ int x, len;
+ uint32_t mask, bits;
+
+ y = y - s1->cursy;
+ mask = s1->cursmask[y];
+ bits = s1->cursbits[y];
+ len = MIN(width - s1->cursx, 32);
+ d = &d[s1->cursx];
+ for (x = 0; x < len; x++) {
+ if (mask & 0x80000000) {
+ if (bits & 0x80000000) {
+ *d = s1->palette[259];
+ } else {
+ *d = s1->palette[258];
+ }
+ }
+ d++;
+ mask <<= 1;
+ bits <<= 1;
+ }
+}
+
/*
XXX Could be much more optimal:
* detect if line/page/whole screen is in 24 bit mode
@@ -162,11 +283,10 @@ static inline void tcx24_draw_line32(TCXState *s1, uint8_t *d,
uint8_t val, *p8;
uint32_t *p = (uint32_t *)d;
uint32_t dval;
-
bgr = is_surface_bgr(surface);
for(x = 0; x < width; x++, s++, s24++) {
- if ((be32_to_cpu(*cplane++) & 0xff000000) == 0x03000000) {
- // 24-bit direct, BGR order
+ if (be32_to_cpu(*cplane) & 0x03000000) {
+ /* 24-bit direct, BGR order */
p8 = (uint8_t *)s24;
p8++;
b = *p8++;
@@ -177,47 +297,18 @@ static inline void tcx24_draw_line32(TCXState *s1, uint8_t *d,
else
dval = rgb_to_pixel32(r, g, b);
} else {
+ /* 8 bits pseudocolor */
val = *s;
dval = s1->palette[val];
}
*p++ = dval;
+ cplane++;
}
}
-static inline int check_dirty(TCXState *s, ram_addr_t page, ram_addr_t page24,
- ram_addr_t cpage)
-{
- int ret;
-
- ret = memory_region_get_dirty(&s->vram_mem, page, TARGET_PAGE_SIZE,
- DIRTY_MEMORY_VGA);
- ret |= memory_region_get_dirty(&s->vram_mem, page24, TARGET_PAGE_SIZE * 4,
- DIRTY_MEMORY_VGA);
- ret |= memory_region_get_dirty(&s->vram_mem, cpage, TARGET_PAGE_SIZE * 4,
- DIRTY_MEMORY_VGA);
- return ret;
-}
-
-static inline void reset_dirty(TCXState *ts, ram_addr_t page_min,
- ram_addr_t page_max, ram_addr_t page24,
- ram_addr_t cpage)
-{
- memory_region_reset_dirty(&ts->vram_mem,
- page_min,
- (page_max - page_min) + TARGET_PAGE_SIZE,
- DIRTY_MEMORY_VGA);
- memory_region_reset_dirty(&ts->vram_mem,
- page24 + page_min * 4,
- (page_max - page_min) * 4 + TARGET_PAGE_SIZE,
- DIRTY_MEMORY_VGA);
- memory_region_reset_dirty(&ts->vram_mem,
- cpage + page_min * 4,
- (page_max - page_min) * 4 + TARGET_PAGE_SIZE,
- DIRTY_MEMORY_VGA);
-}
-
/* Fixed line length 1024 allows us to do nice tricks not possible on
VGA... */
+
static void tcx_update_display(void *opaque)
{
TCXState *ts = opaque;
@@ -226,6 +317,7 @@ static void tcx_update_display(void *opaque)
int y, y_start, dd, ds;
uint8_t *d, *s;
void (*f)(TCXState *s1, uint8_t *dst, const uint8_t *src, int width);
+ void (*fc)(TCXState *s1, uint8_t *dst, int y, int width);
if (surface_bits_per_pixel(surface) == 0) {
return;
@@ -243,20 +335,23 @@ static void tcx_update_display(void *opaque)
switch (surface_bits_per_pixel(surface)) {
case 32:
f = tcx_draw_line32;
+ fc = tcx_draw_cursor32;
break;
case 15:
case 16:
f = tcx_draw_line16;
+ fc = tcx_draw_cursor16;
break;
default:
case 8:
f = tcx_draw_line8;
+ fc = tcx_draw_cursor8;
break;
case 0:
return;
}
- for(y = 0; y < ts->height; y += 4, page += TARGET_PAGE_SIZE) {
+ for (y = 0; y < ts->height; page += TARGET_PAGE_SIZE) {
if (memory_region_get_dirty(&ts->vram_mem, page, TARGET_PAGE_SIZE,
DIRTY_MEMORY_VGA)) {
if (y_start < 0)
@@ -265,18 +360,35 @@ static void tcx_update_display(void *opaque)
page_min = page;
if (page > page_max)
page_max = page;
+
f(ts, d, s, ts->width);
+ if (y >= ts->cursy && y < ts->cursy+32 && ts->cursx < ts->width) {
+ fc(ts, d, y, ts->width);
+ }
d += dd;
s += ds;
+ y++;
f(ts, d, s, ts->width);
+ if (y >= ts->cursy && y < ts->cursy+32 && ts->cursx < ts->width) {
+ fc(ts, d, y, ts->width);
+ }
d += dd;
s += ds;
+ y++;
f(ts, d, s, ts->width);
+ if (y >= ts->cursy && y < ts->cursy+32 && ts->cursx < ts->width) {
+ fc(ts, d, y, ts->width);
+ }
d += dd;
s += ds;
+ y++;
f(ts, d, s, ts->width);
+ if (y >= ts->cursy && y < ts->cursy+32 && ts->cursx < ts->width) {
+ fc(ts, d, y, ts->width);
+ }
d += dd;
s += ds;
+ y++;
} else {
if (y_start >= 0) {
/* flush to display */
@@ -286,6 +398,7 @@ static void tcx_update_display(void *opaque)
}
d += dd * 4;
s += ds * 4;
+ y += 4;
}
}
if (y_start >= 0) {
@@ -328,9 +441,9 @@ static void tcx24_update_display(void *opaque)
dd = surface_stride(surface);
ds = 1024;
- for(y = 0; y < ts->height; y += 4, page += TARGET_PAGE_SIZE,
+ for (y = 0; y < ts->height; page += TARGET_PAGE_SIZE,
page24 += TARGET_PAGE_SIZE, cpage += TARGET_PAGE_SIZE) {
- if (check_dirty(ts, page, page24, cpage)) {
+ if (tcx24_check_dirty(ts, page, page24, cpage)) {
if (y_start < 0)
y_start = y;
if (page < page_min)
@@ -338,25 +451,41 @@ static void tcx24_update_display(void *opaque)
if (page > page_max)
page_max = page;
tcx24_draw_line32(ts, d, s, ts->width, cptr, s24);
+ if (y >= ts->cursy && y < ts->cursy+32 && ts->cursx < ts->width) {
+ tcx_draw_cursor32(ts, d, y, ts->width);
+ }
d += dd;
s += ds;
cptr += ds;
s24 += ds;
+ y++;
tcx24_draw_line32(ts, d, s, ts->width, cptr, s24);
+ if (y >= ts->cursy && y < ts->cursy+32 && ts->cursx < ts->width) {
+ tcx_draw_cursor32(ts, d, y, ts->width);
+ }
d += dd;
s += ds;
cptr += ds;
s24 += ds;
+ y++;
tcx24_draw_line32(ts, d, s, ts->width, cptr, s24);
+ if (y >= ts->cursy && y < ts->cursy+32 && ts->cursx < ts->width) {
+ tcx_draw_cursor32(ts, d, y, ts->width);
+ }
d += dd;
s += ds;
cptr += ds;
s24 += ds;
+ y++;
tcx24_draw_line32(ts, d, s, ts->width, cptr, s24);
+ if (y >= ts->cursy && y < ts->cursy+32 && ts->cursx < ts->width) {
+ tcx_draw_cursor32(ts, d, y, ts->width);
+ }
d += dd;
s += ds;
cptr += ds;
s24 += ds;
+ y++;
} else {
if (y_start >= 0) {
/* flush to display */
@@ -368,6 +497,7 @@ static void tcx24_update_display(void *opaque)
s += ds * 4;
cptr += ds * 4;
s24 += ds * 4;
+ y += 4;
}
}
if (y_start >= 0) {
@@ -377,7 +507,7 @@ static void tcx24_update_display(void *opaque)
}
/* reset modified pages */
if (page_max >= page_min) {
- reset_dirty(ts, page_min, page_max, page24, cpage);
+ tcx24_reset_dirty(ts, page_min, page_max, page24, cpage);
}
}
@@ -394,7 +524,6 @@ static void tcx24_invalidate_display(void *opaque)
TCXState *s = opaque;
tcx_set_dirty(s);
- tcx24_set_dirty(s);
qemu_console_resize(s->con, s->width, s->height);
}
@@ -403,12 +532,7 @@ static int vmstate_tcx_post_load(void *opaque, int version_id)
TCXState *s = opaque;
update_palette_entries(s, 0, 256);
- if (s->depth == 24) {
- tcx24_set_dirty(s);
- } else {
- tcx_set_dirty(s);
- }
-
+ tcx_set_dirty(s);
return 0;
}
@@ -435,56 +559,87 @@ static void tcx_reset(DeviceState *d)
TCXState *s = TCX(d);
/* Initialize palette */
- memset(s->r, 0, 256);
- memset(s->g, 0, 256);
- memset(s->b, 0, 256);
+ memset(s->r, 0, 260);
+ memset(s->g, 0, 260);
+ memset(s->b, 0, 260);
s->r[255] = s->g[255] = s->b[255] = 255;
- update_palette_entries(s, 0, 256);
+ s->r[256] = s->g[256] = s->b[256] = 255;
+ s->r[258] = s->g[258] = s->b[258] = 255;
+ update_palette_entries(s, 0, 260);
memset(s->vram, 0, MAXX*MAXY);
memory_region_reset_dirty(&s->vram_mem, 0, MAXX * MAXY * (1 + 4 + 4),
DIRTY_MEMORY_VGA);
s->dac_index = 0;
s->dac_state = 0;
+ s->cursx = 0xF000; /*Put cursor off screen */
+ s->cursy = 0xF000;
}
static uint64_t tcx_dac_readl(void *opaque, hwaddr addr,
unsigned size)
{
- return 0;
+ TCXState *s = opaque;
+ uint32_t val = 0;
+
+ switch (s->dac_state) {
+ case 0:
+ val = s->r[s->dac_index] << 24;
+ s->dac_state++;
+ break;
+ case 1:
+ val = s->g[s->dac_index] << 24;
+ s->dac_state++;
+ break;
+ case 2:
+ val = s->b[s->dac_index] << 24;
+ s->dac_index = (s->dac_index + 1) & 255; /* Index autoincrement */
+ default:
+ s->dac_state = 0;
+ break;
+ }
+
+ return val;
}
static void tcx_dac_writel(void *opaque, hwaddr addr, uint64_t val,
unsigned size)
{
TCXState *s = opaque;
+ unsigned index;
switch (addr) {
- case 0:
+ case 0: /* Address */
s->dac_index = val >> 24;
s->dac_state = 0;
break;
- case 4:
+ case 4: /* Pixel colours */
+ case 12: /* Overlay (cursor) colours */
+ if (addr & 8) {
+ index = (s->dac_index & 3) + 256;
+ } else {
+ index = s->dac_index;
+ }
switch (s->dac_state) {
case 0:
- s->r[s->dac_index] = val >> 24;
- update_palette_entries(s, s->dac_index, s->dac_index + 1);
+ s->r[index] = val >> 24;
+ update_palette_entries(s, index, index + 1);
s->dac_state++;
break;
case 1:
- s->g[s->dac_index] = val >> 24;
- update_palette_entries(s, s->dac_index, s->dac_index + 1);
+ s->g[index] = val >> 24;
+ update_palette_entries(s, index, index + 1);
s->dac_state++;
break;
case 2:
- s->b[s->dac_index] = val >> 24;
- update_palette_entries(s, s->dac_index, s->dac_index + 1);
- s->dac_index = (s->dac_index + 1) & 255; // Index autoincrement
+ s->b[index] = val >> 24;
+ update_palette_entries(s, index, index + 1);
+ s->dac_index = (s->dac_index + 1) & 255; /* Index autoincrement */
default:
s->dac_state = 0;
break;
}
break;
- default:
+ default: /* Control registers */
break;
}
}
@@ -499,20 +654,267 @@ static const MemoryRegionOps tcx_dac_ops = {
},
};
-static uint64_t dummy_readl(void *opaque, hwaddr addr,
+static uint64_t tcx_stip_readl(void *opaque, hwaddr addr,
+ unsigned size)
+{
+ return 0;
+}
+
+static void tcx_stip_writel(void *opaque, hwaddr addr,
+ uint64_t val, unsigned size)
+{
+ TCXState *s = opaque;
+ int i;
+ uint32_t col;
+
+ if (!(addr & 4)) {
+ s->tmpblit = val;
+ } else {
+ addr = (addr / 8) & 0xFFFFF;
+ col = cpu_to_be32(s->tmpblit);
+ if (s->depth == 24) {
+ for (i = 0; i < 32; i++) {
+ if (val & 0x80000000) {
+ s->vram[addr + i] = s->tmpblit;
+ s->vram24[addr + i] = col;
+ }
+ val <<= 1;
+ }
+ } else {
+ for (i = 0; i < 32; i++) {
+ if (val & 0x80000000) {
+ s->vram[addr + i] = s->tmpblit;
+ }
+ val <<= 1;
+ }
+ }
+ memory_region_set_dirty(&s->vram_mem, addr, 32);
+ }
+}
+
+static void tcx_rstip_writel(void *opaque, hwaddr addr,
+ uint64_t val, unsigned size)
+{
+ TCXState *s = opaque;
+ int i;
+ uint32_t col;
+
+ if (!(addr & 4)) {
+ s->tmpblit = val;
+ } else {
+ addr = (addr / 8) & 0xFFFFF;
+ col = cpu_to_be32(s->tmpblit);
+ if (s->depth == 24) {
+ for (i = 0; i < 32; i++) {
+ if (val&0x80000000) {
+ s->vram[addr + i] = s->tmpblit;
+ s->vram24[addr + i] = col;
+ s->cplane[addr + i] = col;
+ }
+ val <<= 1;
+ }
+ } else {
+ for (i = 0; i < 32; i++) {
+ if (val&0x80000000) {
+ s->vram[addr + i] = s->tmpblit;
+ }
+ val <<= 1;
+ }
+ }
+ memory_region_set_dirty(&s->vram_mem, addr, 32);
+ }
+}
+
+static const MemoryRegionOps tcx_stip_ops = {
+ .read = tcx_stip_readl,
+ .write = tcx_stip_writel,
+ .endianness = DEVICE_NATIVE_ENDIAN,
+ .valid = {
+ .min_access_size = 4,
+ .max_access_size = 4,
+ },
+};
+
+static const MemoryRegionOps tcx_rstip_ops = {
+ .read = tcx_stip_readl,
+ .write = tcx_rstip_writel,
+ .endianness = DEVICE_NATIVE_ENDIAN,
+ .valid = {
+ .min_access_size = 4,
+ .max_access_size = 4,
+ },
+};
+
+static uint64_t tcx_blit_readl(void *opaque, hwaddr addr,
+ unsigned size)
+{
+ return 0;
+}
+
+static void tcx_blit_writel(void *opaque, hwaddr addr,
+ uint64_t val, unsigned size)
+{
+ TCXState *s = opaque;
+ uint32_t adsr, len;
+ int i;
+
+ if (!(addr & 4)) {
+ s->tmpblit = val;
+ } else {
+ addr = (addr / 8) & 0xFFFFF;
+ adsr = val & 0xFFFFFF;
+ len = ((val >> 24) & 0x1F) + 1;
+ if (adsr == 0xFFFFFF) {
+ memset(&s->vram[addr], s->tmpblit, len);
+ if (s->depth == 24) {
+ val = s->tmpblit & 0xFFFFFF;
+ val = cpu_to_be32(val);
+ for (i = 0; i < len; i++) {
+ s->vram24[addr + i] = val;
+ }
+ }
+ } else {
+ memcpy(&s->vram[addr], &s->vram[adsr], len);
+ if (s->depth == 24) {
+ memcpy(&s->vram24[addr], &s->vram24[adsr], len * 4);
+ }
+ }
+ memory_region_set_dirty(&s->vram_mem, addr, len);
+ }
+}
+
+static void tcx_rblit_writel(void *opaque, hwaddr addr,
+ uint64_t val, unsigned size)
+{
+ TCXState *s = opaque;
+ uint32_t adsr, len;
+ int i;
+
+ if (!(addr & 4)) {
+ s->tmpblit = val;
+ } else {
+ addr = (addr / 8) & 0xFFFFF;
+ adsr = val & 0xFFFFFF;
+ len = ((val >> 24) & 0x1F) + 1;
+ if (adsr == 0xFFFFFF) {
+ memset(&s->vram[addr], s->tmpblit, len);
+ if (s->depth == 24) {
+ val = s->tmpblit & 0xFFFFFF;
+ val = cpu_to_be32(val);
+ for (i = 0; i < len; i++) {
+ s->vram24[addr + i] = val;
+ s->cplane[addr + i] = val;
+ }
+ }
+ } else {
+ memcpy(&s->vram[addr], &s->vram[adsr], len);
+ if (s->depth == 24) {
+ memcpy(&s->vram24[addr], &s->vram24[adsr], len * 4);
+ memcpy(&s->cplane[addr], &s->cplane[adsr], len * 4);
+ }
+ }
+ memory_region_set_dirty(&s->vram_mem, addr, len);
+ }
+}
+
+static const MemoryRegionOps tcx_blit_ops = {
+ .read = tcx_blit_readl,
+ .write = tcx_blit_writel,
+ .endianness = DEVICE_NATIVE_ENDIAN,
+ .valid = {
+ .min_access_size = 4,
+ .max_access_size = 4,
+ },
+};
+
+static const MemoryRegionOps tcx_rblit_ops = {
+ .read = tcx_blit_readl,
+ .write = tcx_rblit_writel,
+ .endianness = DEVICE_NATIVE_ENDIAN,
+ .valid = {
+ .min_access_size = 4,
+ .max_access_size = 4,
+ },
+};
+
+static void tcx_invalidate_cursor_position(TCXState *s)
+{
+ int ymin, ymax, start, end;
+
+ /* invalidate only near the cursor */
+ ymin = s->cursy;
+ if (ymin >= s->height) {
+ return;
+ }
+ ymax = MIN(s->height, ymin + 32);
+ start = ymin * 1024;
+ end = ymax * 1024;
+
+ memory_region_set_dirty(&s->vram_mem, start, end-start);
+}
+
+static uint64_t tcx_thc_readl(void *opaque, hwaddr addr,
unsigned size)
{
+ TCXState *s = opaque;
+ uint64_t val;
+
+ if (addr == TCX_THC_MISC) {
+ val = s->thcmisc | 0x02000000;
+ } else {
+ val = 0;
+ }
+ return val;
+}
+
+static void tcx_thc_writel(void *opaque, hwaddr addr,
+ uint64_t val, unsigned size)
+{
+ TCXState *s = opaque;
+
+ if (addr == TCX_THC_CURSXY) {
+ tcx_invalidate_cursor_position(s);
+ s->cursx = val >> 16;
+ s->cursy = val;
+ tcx_invalidate_cursor_position(s);
+ } else if (addr >= TCX_THC_CURSMASK && addr < TCX_THC_CURSMASK + 128) {
+ s->cursmask[(addr - TCX_THC_CURSMASK) / 4] = val;
+ tcx_invalidate_cursor_position(s);
+ } else if (addr >= TCX_THC_CURSBITS && addr < TCX_THC_CURSBITS + 128) {
+ s->cursbits[(addr - TCX_THC_CURSBITS) / 4] = val;
+ tcx_invalidate_cursor_position(s);
+ } else if (addr == TCX_THC_MISC) {
+ s->thcmisc = val;
+ }
+
+}
+
+static const MemoryRegionOps tcx_thc_ops = {
+ .read = tcx_thc_readl,
+ .write = tcx_thc_writel,
+ .endianness = DEVICE_NATIVE_ENDIAN,
+ .valid = {
+ .min_access_size = 4,
+ .max_access_size = 4,
+ },
+};
+
+static uint64_t tcx_dummy_readl(void *opaque, hwaddr addr,
+ unsigned size)
+{
+ /* printf ("TCX Dummy (ALT,DHC,TEC) READ %X %i\n",(int)addr,(int)size);*/
return 0;
}
-static void dummy_writel(void *opaque, hwaddr addr,
+static void tcx_dummy_writel(void *opaque, hwaddr addr,
uint64_t val, unsigned size)
{
+ /* printf ("TCX Dummy (ALT,DHC,TEC) WRITE %X %X\n",(int)addr,(int)val);*/
}
-static const MemoryRegionOps dummy_ops = {
- .read = dummy_readl,
- .write = dummy_writel,
+static const MemoryRegionOps tcx_dummy_ops = {
+ .read = tcx_dummy_readl,
+ .write = tcx_dummy_writel,
.endianness = DEVICE_NATIVE_ENDIAN,
.valid = {
.min_access_size = 4,
@@ -539,20 +941,50 @@ static void tcx_initfn(Object *obj)
memory_region_set_readonly(&s->rom, true);
sysbus_init_mmio(sbd, &s->rom);
- /* DAC */
+ /* 2/STIP : Stippler */
+ memory_region_init_io(&s->stip, OBJECT(s), &tcx_stip_ops, s, "tcx.stip",
+ TCX_STIP_NREGS);
+ sysbus_init_mmio(sbd, &s->stip);
+
+ /* 3/BLIT : Blitter */
+ memory_region_init_io(&s->blit, OBJECT(s), &tcx_blit_ops, s, "tcx.blit",
+ TCX_BLIT_NREGS);
+ sysbus_init_mmio(sbd, &s->blit);
+
+ /* 5/RSTIP : Raw Stippler */
+ memory_region_init_io(&s->rstip, OBJECT(s), &tcx_rstip_ops, s, "tcx.rstip",
+ TCX_RSTIP_NREGS);
+ sysbus_init_mmio(sbd, &s->rstip);
+
+ /* 6/RBLIT : Raw Blitter */
+ memory_region_init_io(&s->rblit, OBJECT(s), &tcx_rblit_ops, s, "tcx.rblit",
+ TCX_RBLIT_NREGS);
+ sysbus_init_mmio(sbd, &s->rblit);
+
+ /* 7/TEC : ??? */
+ memory_region_init_io(&s->tec, OBJECT(s), &tcx_dummy_ops, s,
+ "tcx.tec", TCX_TEC_NREGS);
+ sysbus_init_mmio(sbd, &s->tec);
+
+ /* 8/CMAP : DAC */
memory_region_init_io(&s->dac, OBJECT(s), &tcx_dac_ops, s,
"tcx.dac", TCX_DAC_NREGS);
sysbus_init_mmio(sbd, &s->dac);
- /* TEC (dummy) */
- memory_region_init_io(&s->tec, OBJECT(s), &dummy_ops, s,
- "tcx.tec", TCX_TEC_NREGS);
- sysbus_init_mmio(sbd, &s->tec);
+ /* 9/THC : Cursor */
+ memory_region_init_io(&s->thc, OBJECT(s), &tcx_thc_ops, s, "tcx.thc",
+ TCX_THC_NREGS);
+ sysbus_init_mmio(sbd, &s->thc);
- /* THC: NetBSD writes here even with 8-bit display: dummy */
- memory_region_init_io(&s->thc24, OBJECT(s), &dummy_ops, s, "tcx.thc24",
- TCX_THC_NREGS_24);
- sysbus_init_mmio(sbd, &s->thc24);
+ /* 11/DHC : ??? */
+ memory_region_init_io(&s->dhc, OBJECT(s), &tcx_dummy_ops, s, "tcx.dhc",
+ TCX_DHC_NREGS);
+ sysbus_init_mmio(sbd, &s->dhc);
+
+ /* 12/ALT : ??? */
+ memory_region_init_io(&s->alt, OBJECT(s), &tcx_dummy_ops, s, "tcx.alt",
+ TCX_ALT_NREGS);
+ sysbus_init_mmio(sbd, &s->alt);
return;
}
@@ -571,7 +1003,7 @@ static void tcx_realizefn(DeviceState *dev, Error **errp)
vmstate_register_ram_global(&s->vram_mem);
vram_base = memory_region_get_ram_ptr(&s->vram_mem);
- /* FCode ROM */
+ /* 10/ROM : FCode ROM */
vmstate_register_ram_global(&s->rom);
fcode_filename = qemu_find_file(QEMU_FILE_TYPE_BIOS, TCX_ROM_FILE);
if (fcode_filename) {
@@ -582,7 +1014,7 @@ static void tcx_realizefn(DeviceState *dev, Error **errp)
}
}
- /* 8-bit plane */
+ /* 0/DFB8 : 8-bit plane */
s->vram = vram_base;
size = s->vram_size;
memory_region_init_alias(&s->vram_8bit, OBJECT(s), "tcx.vram.8bit",
@@ -591,34 +1023,37 @@ static void tcx_realizefn(DeviceState *dev, Error **errp)
vram_offset += size;
vram_base += size;
- if (s->depth == 24) {
- /* 24-bit plane */
- size = s->vram_size * 4;
- s->vram24 = (uint32_t *)vram_base;
- s->vram24_offset = vram_offset;
- memory_region_init_alias(&s->vram_24bit, OBJECT(s), "tcx.vram.24bit",
- &s->vram_mem, vram_offset, size);
- sysbus_init_mmio(sbd, &s->vram_24bit);
- vram_offset += size;
- vram_base += size;
-
- /* Control plane */
- size = s->vram_size * 4;
- s->cplane = (uint32_t *)vram_base;
- s->cplane_offset = vram_offset;
- memory_region_init_alias(&s->vram_cplane, OBJECT(s), "tcx.vram.cplane",
- &s->vram_mem, vram_offset, size);
- sysbus_init_mmio(sbd, &s->vram_cplane);
+ /* 1/DFB24 : 24bit plane */
+ size = s->vram_size * 4;
+ s->vram24 = (uint32_t *)vram_base;
+ s->vram24_offset = vram_offset;
+ memory_region_init_alias(&s->vram_24bit, OBJECT(s), "tcx.vram.24bit",
+ &s->vram_mem, vram_offset, size);
+ sysbus_init_mmio(sbd, &s->vram_24bit);
+ vram_offset += size;
+ vram_base += size;
- s->con = graphic_console_init(DEVICE(dev), 0, &tcx24_ops, s);
- } else {
- /* THC 8 bit (dummy) */
- memory_region_init_io(&s->thc8, OBJECT(s), &dummy_ops, s, "tcx.thc8",
- TCX_THC_NREGS_8);
- sysbus_init_mmio(sbd, &s->thc8);
+ /* 4/RDFB32 : Raw Framebuffer */
+ size = s->vram_size * 4;
+ s->cplane = (uint32_t *)vram_base;
+ s->cplane_offset = vram_offset;
+ memory_region_init_alias(&s->vram_cplane, OBJECT(s), "tcx.vram.cplane",
+ &s->vram_mem, vram_offset, size);
+ sysbus_init_mmio(sbd, &s->vram_cplane);
+ /* 9/THC24bits : NetBSD writes here even with 8-bit display: dummy */
+ if (s->depth == 8) {
+ memory_region_init_io(&s->thc24, OBJECT(s), &tcx_dummy_ops, s,
+ "tcx.thc24", TCX_THC_NREGS);
+ sysbus_init_mmio(sbd, &s->thc24);
+ }
+
+ if (s->depth == 8) {
s->con = graphic_console_init(DEVICE(dev), 0, &tcx_ops, s);
+ } else {
+ s->con = graphic_console_init(DEVICE(dev), 0, &tcx24_ops, s);
}
+ s->thcmisc = 0;
qemu_console_resize(s->con, s->width, s->height);
}
diff --git a/hw/sparc/sun4m.c b/hw/sparc/sun4m.c
index 67e3663..386da82 100644
--- a/hw/sparc/sun4m.c
+++ b/hw/sparc/sun4m.c
@@ -541,24 +541,40 @@ static void tcx_init(hwaddr addr, int vram_size, int width,
qdev_prop_set_uint64(dev, "prom_addr", addr);
qdev_init_nofail(dev);
s = SYS_BUS_DEVICE(dev);
- /* FCode ROM */
+
+ /* 10/ROM : FCode ROM */
sysbus_mmio_map(s, 0, addr);
- /* DAC */
- sysbus_mmio_map(s, 1, addr + 0x00200000ULL);
- /* TEC (dummy) */
- sysbus_mmio_map(s, 2, addr + 0x00700000ULL);
- /* THC 24 bit: NetBSD writes here even with 8-bit display: dummy */
- sysbus_mmio_map(s, 3, addr + 0x00301000ULL);
- /* 8-bit plane */
- sysbus_mmio_map(s, 4, addr + 0x00800000ULL);
- if (depth == 24) {
- /* 24-bit plane */
- sysbus_mmio_map(s, 5, addr + 0x02000000ULL);
- /* Control plane */
- sysbus_mmio_map(s, 6, addr + 0x0a000000ULL);
+ /* 2/STIP : Stipple */
+ sysbus_mmio_map(s, 1, addr + 0x04000000ULL);
+ /* 3/BLIT : Blitter */
+ sysbus_mmio_map(s, 2, addr + 0x06000000ULL);
+ /* 5/RSTIP : Raw Stipple */
+ sysbus_mmio_map(s, 3, addr + 0x0C000000ULL);
+ /* 6/RBLIT : Raw Blitter */
+ sysbus_mmio_map(s, 4, addr + 0x0E000000ULL);
+ /* 7/TEC : Transform Engine */
+ sysbus_mmio_map(s, 5, addr + 0x00700000ULL);
+ /* 8/CMAP : DAC */
+ sysbus_mmio_map(s, 6, addr + 0x00200000ULL);
+ /* 9/THC : */
+ if (depth == 8) {
+ sysbus_mmio_map(s, 7, addr + 0x00300000ULL);
} else {
- /* THC 8 bit (dummy) */
- sysbus_mmio_map(s, 5, addr + 0x00300000ULL);
+ sysbus_mmio_map(s, 7, addr + 0x00301000ULL);
+ }
+ /* 11/DHC : */
+ sysbus_mmio_map(s, 8, addr + 0x00240000ULL);
+ /* 12/ALT : */
+ sysbus_mmio_map(s, 9, addr + 0x00280000ULL);
+ /* 0/DFB8 : 8-bit plane */
+ sysbus_mmio_map(s, 10, addr + 0x00800000ULL);
+ /* 1/DFB24 : 24bit plane */
+ sysbus_mmio_map(s, 11, addr + 0x02000000ULL);
+ /* 4/RDFB32: Raw framebuffer. Control plane */
+ sysbus_mmio_map(s, 12, addr + 0x0A000000ULL);
+ /* 9/THC24bits : NetBSD writes here even with 8-bit display: dummy */
+ if (depth == 8) {
+ sysbus_mmio_map(s, 13, addr + 0x00301000ULL);
}
}
