As promised on today's OVN IRC meeting...
We're in the process of testing OVN at scale as well as looking at the
performance of the various planes of OVN.
One of the initial management plane scaling tests is to
1. Create OpenStack external etwork x1 with IPv4 subnet xs1 (we aren't
testing the data plane, so we don't have to worry about NAT)
2. Replicate the following template 400 times
a. Create OpenStack project p(i) and then in p(i):
b. create a network n1 and assign an IPv4 subnet s1 to it
c. create a router, assign an interface to s1 and set the router's
external gateway to xs1
d. launch a compute instance i1, attached to n1
[in a network line diagram: i1 -- n1(s1) -- r1 -- x1(xs1)]
When doing this with on a four VM cloud (each VM has four CPU cores and 16
GB of memory), we are seeing the steps "assign an interface to s1" and "set
the router's external gateway to xs1" take longer amounts of time as the
number of templates increases.
Looking at the ovsdb server logs during this test, one can break down
OVN_Northbound operations into three buckets:
(1) pure insert operations
(2) operations that combine and insert and an update
(3) pure update operations
Data from buckets (1) and (2) were combined and plotted in
http://ibin.co/2V2VVrQYDKyI - The vertical axis is in seconds, and the
horizontal axis is "transaction during the test", so while I can't tell you
exactly where in the test a particular point occurred, one can look at the
graph and say with some level
of confidence that inserting rows into a table isn't all that expensive an
operation.

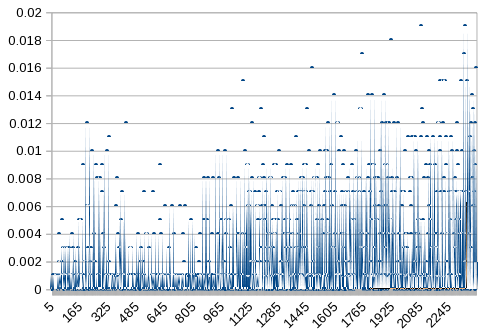

Data from bucket (3) was plotted as http://ibin.co/2V2Vjb9rVqUK - Again,
the vertical axis is in seconds, and the horizontal axis is "transaction
during the test". All of these operations are updates to port state in the
Logical_Ports table and I read this plot as saying that as we have more and
more ports in the Logical_Ports table, update operations can take longer
and longer. Given the OVN scale I am looking at (the current test cloud
is 125 hypervisors), any linearity in time (even via increased variability)
is something I'd like to see if we can improve...
Ryan Moats (regXboi)
IBM
