davids5 opened a new pull request #1604:
URL: https://github.com/apache/incubator-nuttx/pull/1604


   ## Summary

      When CONFIG_MMCSD_MULTIBLOCK_DISABLE is lit, all SD
      read/write failed. The function return the number of
      blocks in `ret`, set on entry to nsectors. That was
      then wiped out by using the ret for the mmcsd_takesem.

      Since the code had many path setting return, the choices for
      the fix could have been add a new varaible or simple init it
      were used. I choose the latter.

   ## Impact

   Since 2020-03-31 SD cards not using multi block (i.e with
CONFIG_MMCSD_MULTIBLOCK_DISABLE) are broken.

   ## Testing

   was done on nxp_fmuk66-v3

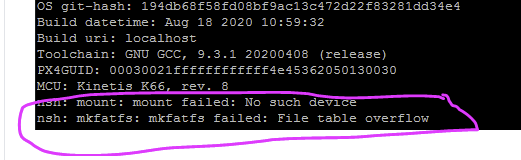

   Before PR

![image](https://user-images.githubusercontent.com/1945821/90558856-995f9480-e151-11ea-9ef6-69286b901198.png)


![image](https://user-images.githubusercontent.com/1945821/90558548-19d1c580-e151-11ea-99cf-a578065548c5.png)

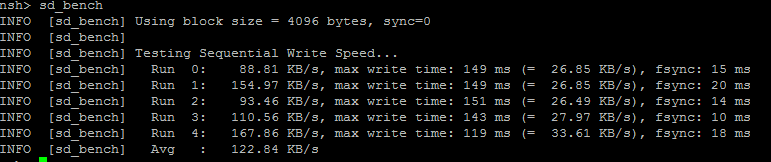

   After PR:
   mount is fine

![image](https://user-images.githubusercontent.com/1945821/90558699-58678000-e151-11ea-88e6-31e4b369f402.png)





----------------------------------------------------------------
